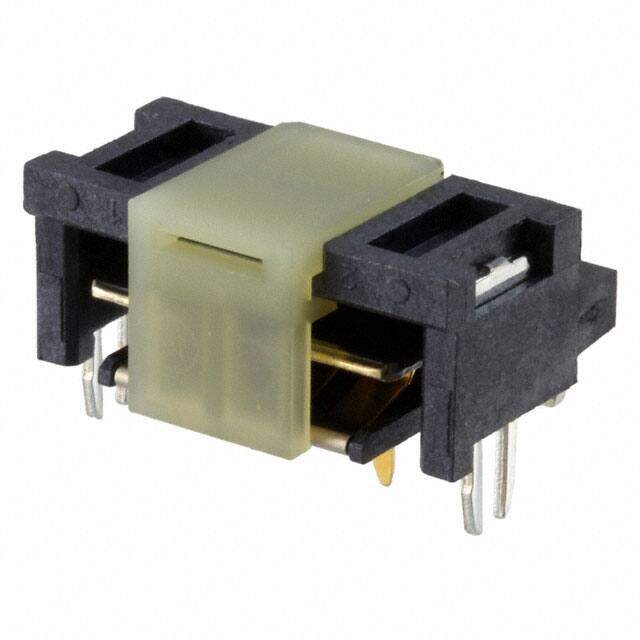

1982295-5
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description
Conn Power PIN 2 POS 8.3mm Solder RA Thru-Hole 4 Terminal 1 Port Tray
PDF
/
Buying Options
Total Price: USD $2.68
Unit Price: USD $2.6752
≥1 USD $2.6752
≥10 USD $2.38304
≥100 USD $2.37072
≥500 USD $2.346573
≥1000 USD $2.115502
≥3000 USD $2.103341
Inventory: 163
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Contact Plating Silver, Gold
Mount Edge, Through Hole
Mounting Type Through Hole, Right Angle
Housing Material Polymer
PCB Mounting Orientation Right Angle
Technical
Operating Temperature 20°C~65°C
Packaging Tray
Published 2014
Series Elcon Mini
Feature Board Lock
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Male Blades
Color Black
Number of Rows 1
Fastening Type Pull, Push
Subcategory Headers and Edge Type Connectors
Mixed Contacts YES
Current Rating (Amps) 26A
Pitch 0.307 7.80mm
Total Number of Contacts 2
Orientation Right Angle
Number of Positions Loaded All
Current Rating 30A
Number of Conductors ONE
Contact Finish Gold
Reliability COMMERCIAL
Operating Supply Voltage 500V
Contact Style BLADE PIN-SKT
Insulation Resistance 1GOhm
Row Spacing 7.8 mm
ELV Compliant
Plating Silver
Sealable No
Contact Current Rating 40A
Circuit Application Power
Number of Power Positions 2
Number of Signal Positions 0
Contact Layout, Typical 2 Power
Contact Retention With
Dimensions
Height 8mm
Length 18.2mm
Contact Finish Thickness 118.1μin 3.00μm
Plating Thickness 800 nm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
