1926720-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description

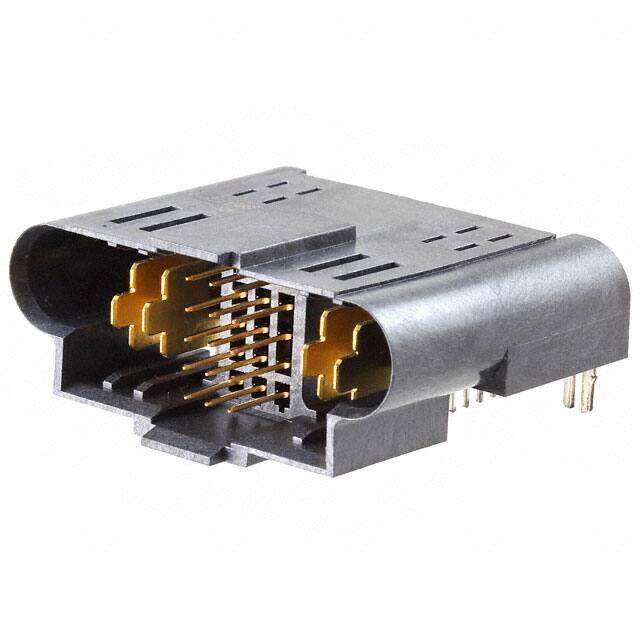

Power to the Board 2/AC+15S+2/AC=19POS MINIPAK HDL R/A PLUG
PDF
/
Inventory: 5199
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 25 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 months ago)
Physical
Contact Material Copper
Contact Plating Tin, Gold
Mount Edge, Through Hole
Mounting Type Board Edge, Through Hole, Right Angle
Housing Material Thermoplastic
PCB Mounting Orientation Right Angle
Underplate Material Nickel
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Published 2010
Series MINIPAK HDL
Feature Board Lock, Mating Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Press-Fit
Connector Type Header, Male Pins and Blades
Number of Positions 19
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Color Black
Number of Rows 5
Voltage - Rated 250V
Current Rating (Amps) 16A
Pitch 0.079 2.00mm
Orientation Right Angle
Number of Positions Loaded All
Current Rating 16A
Contact Finish Gold or Gold-Palladium
Approval Agency CSA
Number of Contacts 39
Contact Gender Male
Housing Color Black
Operating Supply Voltage 250V
Insulation Resistance 1GOhm
Row Spacing 50.8 mm
ELV Non-Compliant
Plating Gold
Sealable No
Contact Current Rating 16A
Circuit Application Power
Number of Power Positions 4
Number of Signal Positions 15
Contact Layout, Typical 15 Signal, 4 Power
Contact Retention With
Dimensions
Height 8mm
Length 33.274mm
Width 26.4922mm
Contact Finish Thickness 30.0μin 0.76μm
Plating Thickness 760 nm
PCB Thickness 55μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
