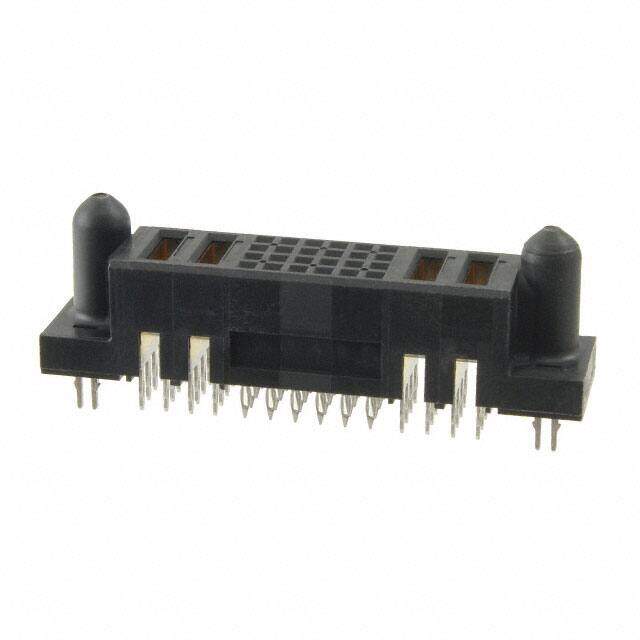

1892430-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description
CONN RCPT MULTI-BEAM 30POS PCB
PDF
/
Inventory: 3375
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Plating Thickness 760 nm
Contact Finish Thickness 30.0μin 0.76μm
Technical
Contact Retention Without
Contact Layout, Typical 24 Signal, 4 Power
Number of Signal Positions 24
Number of Power Positions 4
Circuit Application Power
Contact Current Rating 42A
Sealable No
Connector Style Multi-Beam
Row Spacing 2.54 mm
Operating Supply Voltage 60V
Housing Color Black
Number of Contacts 28
Contact Finish Gold
Current Rating 42A
Number of Positions Loaded All
Orientation Vertical
Pitch 0.100 2.54mm
Gender Receptacle
Number of Rows 4
Min Operating Temperature -20°C
Max Operating Temperature 105°C
Number of Positions 30
Connector Type Receptacle, Female Sockets and Blade Sockets
Termination Press-Fit
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock, Guide Pin
Series MULTI-BEAM XL
Published 2011
Packaging Tray
Operating Temperature -20°C~105°C
Physical
PCB Mounting Orientation Vertical
Housing Material Thermoplastic
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 months ago)
Factory Lead Time 25 Weeks
