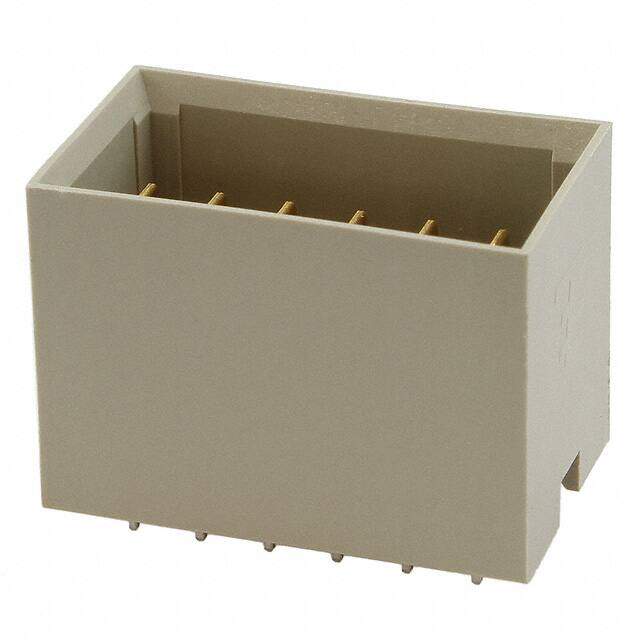

1645498-4
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description
CONN PLUG BLADE PWR 6POS PCB
PDF
/
Buying Options
Total Price: USD $6.02
Unit Price: USD $6.0192
≥1 USD $6.0192
≥10 USD $5.2448
≥100 USD $4.968982
≥500 USD $4.860108
Inventory: 1022
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 23 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Contact Material Bronze
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Package / Case Module
Housing Material PBT
PCB Mounting Orientation Vertical
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2010
Series UPM (Universal Power Modules)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 30
Termination Press-Fit
Connector Type Plug, Male Blades
Number of Positions 6
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Color Natural
Number of Rows 1
Gender Male
Voltage - Rated 250V
Pitch 0.118 3.00mm
Orientation Vertical
Depth 12.46mm
Number of Positions Loaded All
Current Rating 10A
Contact Finish Gold
Number of Contacts 6
Housing Color Natural
Operating Supply Voltage 250V
Row Spacing 0 m
ELV Compliant
Connector Style Blade Power
Number of Ports 1
Sealable No
Contact Current Rating 16A
Circuit Application Power
Number of Power Positions 6
Number of Signal Positions 0
Contact Layout, Typical 6 Power
Contact Retention With
Dimensions
Length 20.95mm
Contact Finish Thickness 50.0μin 1.27μm
Plating Thickness 1.27μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
