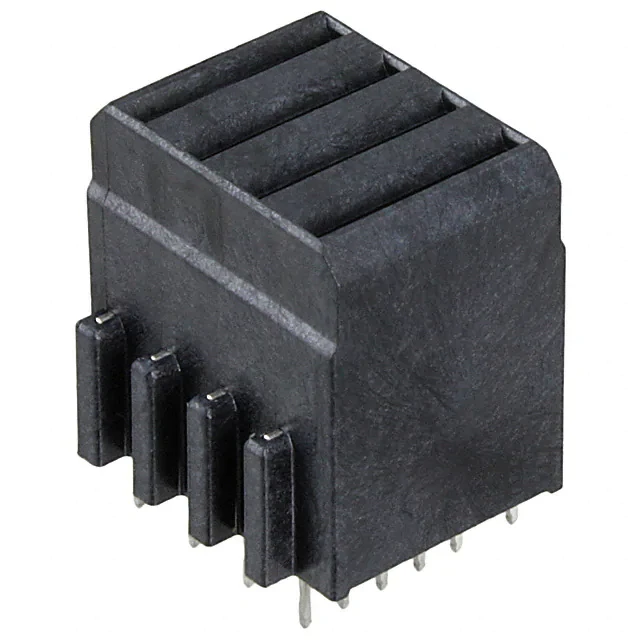

1410270-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description
RECEPTACLE, MULTIGIG RT, 4WAY
PDF
/
Buying Options
Total Price: USD $14.63
Unit Price: USD $14.6256
≥1 USD $14.6256
≥10 USD $14.322
≥100 USD $13.94133
≥500 USD $13.255862
≥1000 USD $11.960731
≥3000 USD $11.884532
Inventory: 386
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 1.4mm
Plating Thickness 1.27μm
Contact Finish Thickness 50.0μin 1.27μm
Width 15.25mm
Length 29.59mm
Height 15.25mm
Technical
Guide Hardware Without
Contact Voltage Rating (DC) 250V
Stackable No
Connector Usage Backplane
Number of Columns 4
Contact Layout, Typical 4 Power
Hole Diameter 610 μm
Number of Power Positions 4
Circuit Application Power
Contact Current Rating 20A
Max Voltage Rating (AC) 250V
ELV Compliant
Operating Supply Voltage 250V
Housing Color Black
Number of Contacts 4
Contact Finish Gold
Current Rating 20A
Number of Positions Loaded All
Depth 15.25mm
Orientation Vertical
Pitch 3.6mm
Current Rating (Amps) 20A
Voltage - Rated 250V
Gender Receptacle
Number of Rows 1
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Number of Positions 4
Connector Type Receptacle, Female Blade Sockets
Termination Press-Fit
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series MultiGig RT
Published 2007
Packaging Tube
Operating Temperature -55°C~105°C
Physical
PCB Mounting Orientation Vertical
Housing Material Polymer
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 25 Weeks
