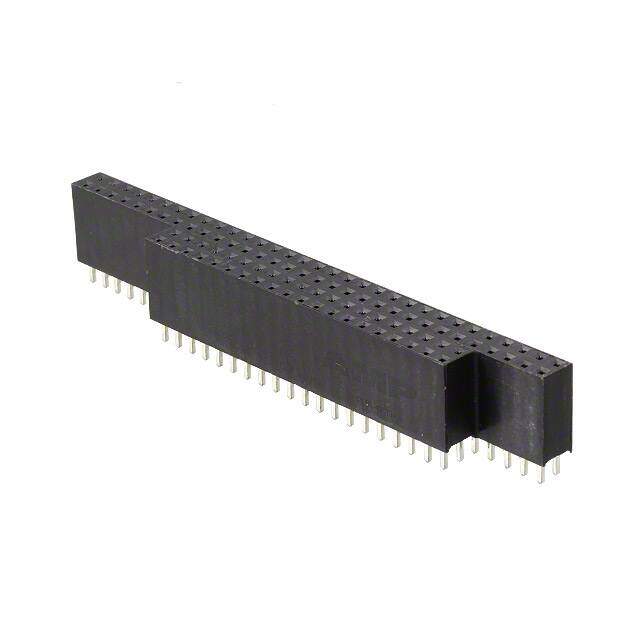

1375963-2
RoHS
/
Package /
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description
PC / 104 Connectors NONSTKTHRU UNKEYED No standoffs
PDF
/
Buying Options
Total Price: USD $34.55
Unit Price: USD $34.5488
≥1 USD $34.5488
≥10 USD $28.516611
≥100 USD $26.5056
≥500 USD $25.04326
≥1000 USD $24.494923
≥3000 USD $24.312094
Inventory: 172
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Plating Thickness 15μin
Contact Finish Thickness 15.0μin 0.38μm
Length 81.6mm
Technical
Keyed No
Mating Contact Row Spacing 0.1 inch
Insertion Force-Max 1.3622 N
Contact Pattern RECTANGULAR
Durability 50 Cycles
Connector Style PC/104
Dielectric Withstanding Voltage 500VAC V
Polarization Key POLARIZED HOUSING
ELV Non-Compliant
Insulation Resistance 1GOhm
Contact Resistance 30mOhm
Contact Style SQ PIN-SKT
Rated Current (Signal) 2A
Lead Length 3.0226mm
Body Breadth 0.39 inch
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 4
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Number of Conductors ONE
Number of Positions Loaded All
Depth 9.9mm
Orientation Straight
Total Number of Contacts 104
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Gender Receptacle
Number of Rows 4
Color Black
Number of Positions 104
Connector Type Non-Stackthrough, Unkeyed (PC/104)
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
Series AMPMODU
Published 2008
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Housing Material Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Material Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 28 Weeks
