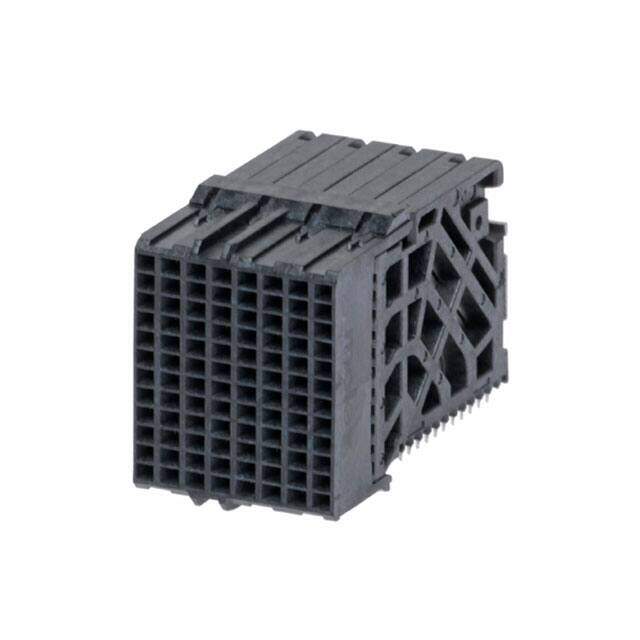

0761601038 image
Favorite
0761601038 image
Favorite

0761601038

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description Conn Daughter Card RCP 96 POS 1.9mm Press Fit RA Thru-Hole Impact? Tray
PDF
/
Buying Options
Total Price: USD $14.04
Unit Price: USD $14.0448
≥1 USD $14.0448
≥10 USD $12.44672
≥100 USD $9.893294
Inventory: 627
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness 30.0μin 0.76μm
Length 15.2mm

Technical

Number of Columns 8
Contact Layout, Typical 32 Differential Pairs
Max Voltage Rating (DC) 30V
Connector Style Impact
Max Voltage Rating (AC) 30V
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Finish Gold
Number of Positions Loaded All
Orientation Right Angle
Total Number of Contacts 96
Pitch 0.053 1.35mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Number of Rows 12
Color Black
Number of Positions 96
Connector Type Receptacle, Female Sockets
Termination Press-Fit
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide
JESD-609 Code e3
Series Impact 76160
Packaging Tray
Operating Temperature -55°C~85°C

Physical

Housing Material Polymer
Mounting Type Board Edge, Through Hole, Right Angle
Mount Edge, Through Hole
Contact Material NOT SPECIFIED

Supply Chain

Factory Lead Time 13 Weeks
