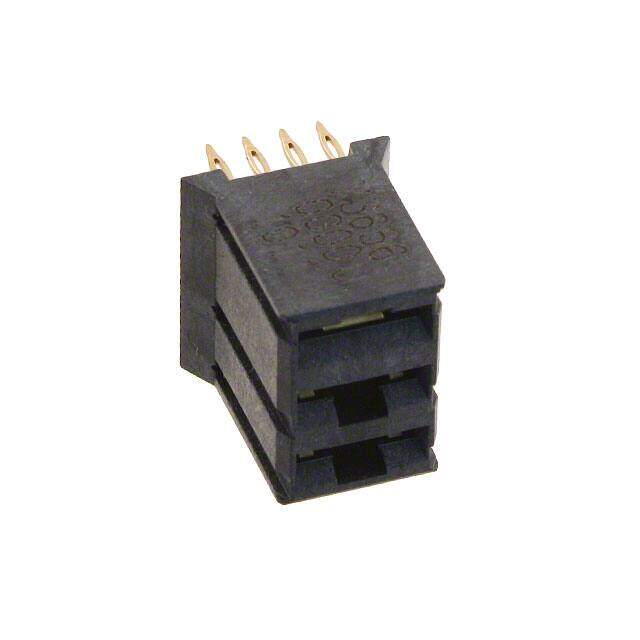

0736560000

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description Conn Hard Metric RCP 3Power POS Press Fit ST Thru-Hole HDM? Tube
PDF
/
Buying Options
Total Price: USD $13.9
Unit Price: USD $13.904
≥1 USD $13.904
≥10 USD $12.32176
≥100 USD $9.794048
Inventory: 678
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness 30.0μin 0.76μm
Length 12.6mm

Technical

Number of Columns 1
Contact Layout, Typical 3 Power
Connector Style HDM
Max Voltage Rating (AC) 500V
Insulation Resistance 1GOhm
Empty Shell NO
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
Number of Contacts 3
Lead Pitch 3.5mm
Contact Finish Gold
Current Rating 15A
Number of Positions Loaded All
Depth 11.3mm
Orientation Right Angle, Vertical
Pitch 2mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Gender Receptacle
Color Black
Connector Type Receptacle, Female Blade Sockets
Termination Press-Fit
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series HDM (High Density Metric) 73656
Packaging Tube
Operating Temperature -55°C~105°C

Physical

Housing Material Thermoplastic
Shell Material POLYETHYLENE
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper

Supply Chain

Factory Lead Time 6 Weeks
