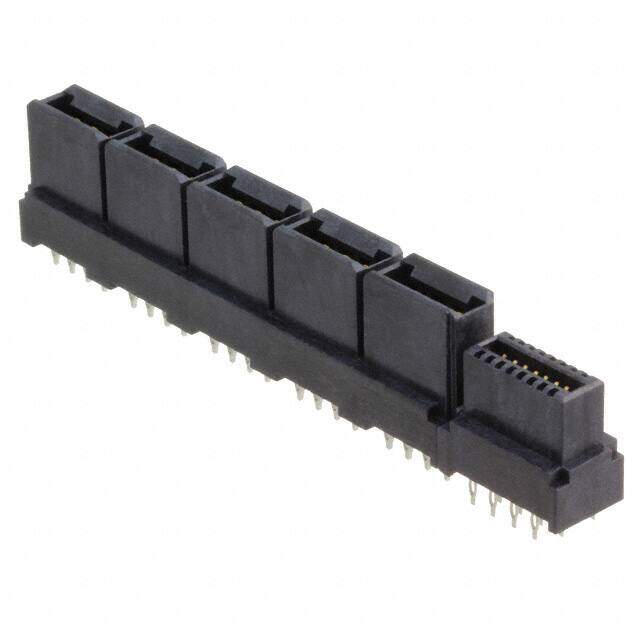

0461141017
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description
Conn LPH HDR 10Power/16Signal POS Press Fit ST Thru-Hole 66 Terminal 1 Port EXTreme LPHPower? Tray
PDF
/
Inventory: 6022
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Technical
Contact Layout, Typical 16 Signal, 10 Power
Connector Style LPHPower
Empty Shell NO
UL Flammability Code 94V-0
Contact Gender FEMALE
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Finish Gold
Number of Positions Loaded All
Total Number of Contacts 26
Option GENERAL PURPOSE
Mixed Contacts YES
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Additional Feature POLARIZED
Voltage - Rated 250V
Number of Rows 2
Color Black
Number of Positions 26
Connector Type Receptacle, Outer Shroud Contacts
Termination Press-Fit
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series EXTreme LPHPower 46114
Packaging Tray
Operating Temperature -40°C~105°C
Physical
Shell Material POLYETHYLENE
Mounting Type Through Hole
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 12 Weeks
