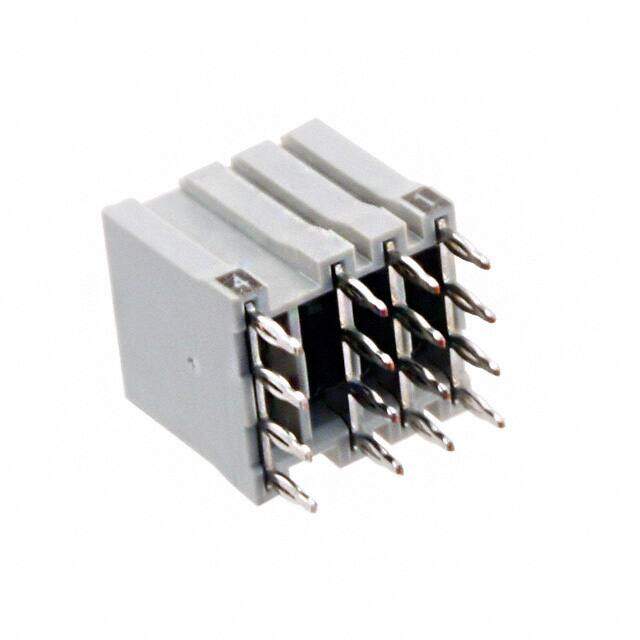

17660042201
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description
Connectors; Hard Metric; HM POWER SOCKET4POL
PDF
/
Buying Options
Total Price: USD $8.02
Unit Price: USD $8.0168
≥1 USD $8.0168
≥10 USD $7.21248
≥100 USD $6.79404
≥500 USD $6.6198
≥1000 USD $6.44556
≥3000 USD $5.748758
Inventory: 56
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 12.8mm
Technical
Connector Usage Backplane-to-Daughtercard
Contact Layout, Typical 4 Power
Number of Ports 1
Connector Style Blade Power
Max Current Rating 23A
Current Rating 20A
Number of Positions Loaded All
Depth 11.85mm
Orientation Straight
Total Number of Contacts 4
Pitch 0.118 3.00mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Gender Female
Number of Rows 1
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 4
Connector Type Receptacle, Female Blade Sockets
Termination Press-Fit
Number of Terminations 16
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series har-bus? HM
Packaging Tray
Physical
Housing Material Thermoplastic
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Supply Chain
Factory Lead Time 4 Weeks
