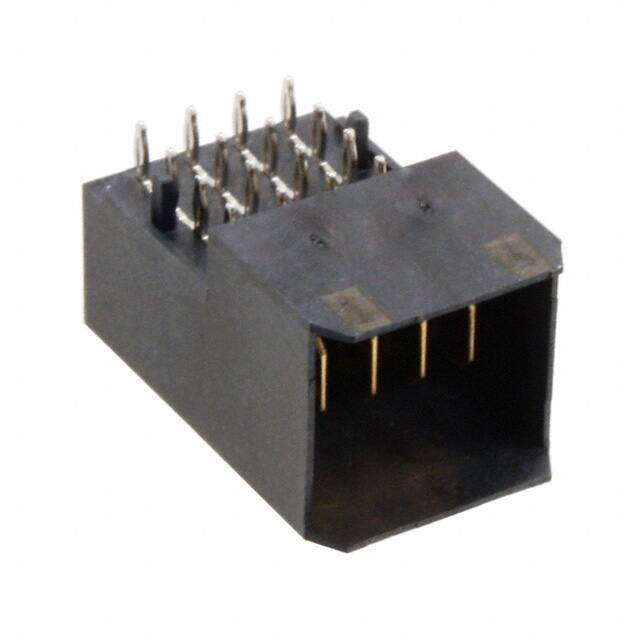

17610042102

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description Hard Metric Connectors HM-POWER KNIFE EDGE 4 POL AFS 2
PDF
/
Buying Options
Total Price: USD $8.05
Unit Price: USD $8.052
≥1 USD $8.052
≥10 USD $7.24856
≥100 USD $6.82851
≥500 USD $6.65353
≥1000 USD $6.47849
≥3000 USD $5.77808
Inventory: 65
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Length 15mm

Technical

Connector Usage Backplane-to-Daughtercard
Contact Layout, Typical 4 Power
Number of Ports 1
Connector Style Blade Power
Max Current Rating 23A
Current Rating 20A
Number of Positions Loaded All
Depth 24.5mm
Orientation Right Angle
Total Number of Contacts 4
Pitch 0.118 3.00mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Number of Rows 1
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 4
Connector Type Header, Male Blades
Termination Press-Fit
Number of Terminations 16
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide
Series har-bus? HM
Packaging Tube

Physical

Housing Material Thermoplastic
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold

Supply Chain

Factory Lead Time 7 Weeks
