16340961101000
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description

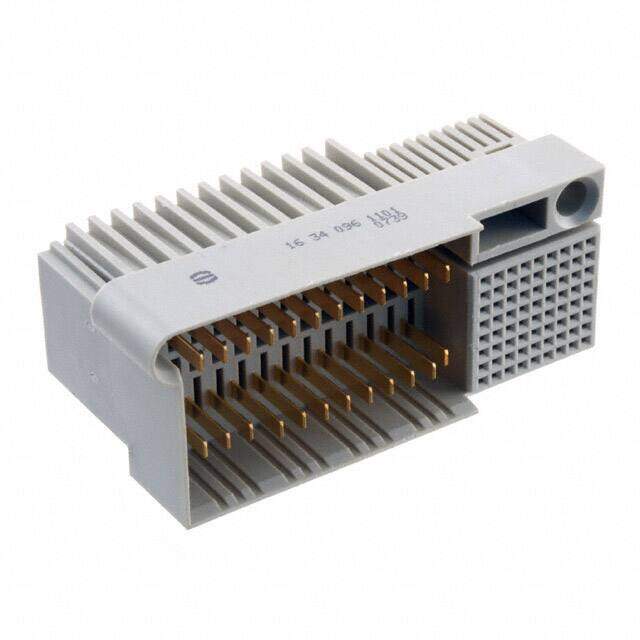

Micro TCA Connectors MTCA PWR MOD CONN
PDF
/
Inventory: 7068
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Package / Case Module
Insulation Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Weight 57.479991g
Technical
Packaging Bag
Series ATCA / mTCA
Feature Mating Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Press-Fit
Connector Type Power Module, Female Sockets and Male Blades
Number of Positions 96
Number of Rows 8
Gender Male
Additional Feature ROHS COMPLIANT
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts YES
Option GENERAL PURPOSE
Total Number of Contacts 96
Terminal Pitch 2mm
Number of Positions Loaded All
Current Rating 9.3A
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 2.528 inch
Operating Temperature (Max) 105°C
Body Breadth 1.024 inch
Operating Temperature (Min) -55°C
Body Depth 1.274 inch
Rated Current (Signal) 1A
Contact Resistance 25mOhm
Insulation Resistance 100000000Ohm
Body/Shell Style PLUG/RECEPTACLE
Connector Style MicroTCA?
Durability 200 Cycles
Insertion Force-Max 1.4734 N
Withdrawl Force-Min 1.112 N
Contact Layout, Typical 72 Signal, 24 Power
Connector Usage Daughtercard
Contact Arrangement S72P24
Dimensions
Length - Termination 0.11 inch
Compliance
RoHS Status ROHS3 Compliant
