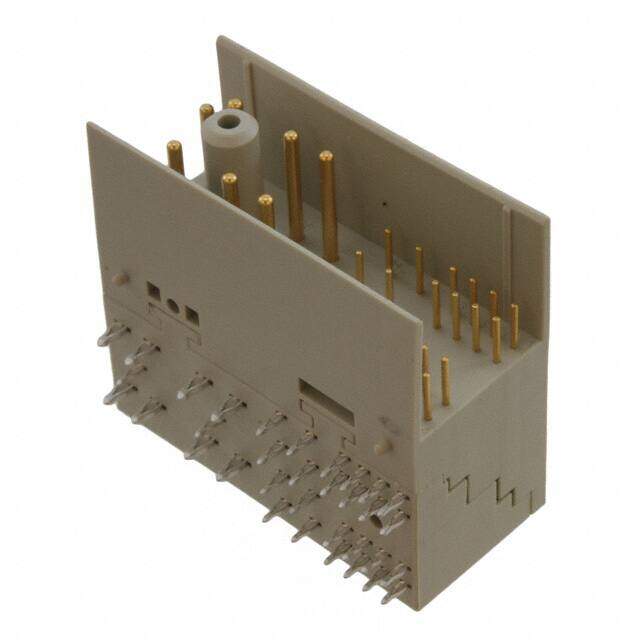

16320341101000
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description
ATCA POWER MODULE CONN 34PINS
PDF
/
Inventory: 7149
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length - Termination 0.161 inch
Technical
Contact Arrangement S26P8
Connector Usage Daughtercard
Contact Layout, Typical 26 Signal, 8 Power
Insulator Color GRAY
Durability 250 Cycles
Connector Style Power
Contact Resistance 8.5mOhm
Rated Current (Signal) 1A
Empty Shell NO
UL Flammability Code 94V-0
Operating Temperature (Min) -55°C
Body Breadth 0.822 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Operating Temperature (Max) 125°C
Body Length or Diameter 1.815 inch
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Number of Conductors ONE
Current Rating 16A
Number of Positions Loaded All
Total Number of Contacts 34
Option GENERAL PURPOSE
Mixed Contacts YES
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Number of Positions 34
Connector Type Plug, Male Pins
Termination Press-Fit
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Guide Pin
JESD-609 Code e4
Series ATCA / mTCA
Packaging Bulk
Physical
Insulation Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Package / Case Module
Mounting Type Through Hole, Right Angle
Mount Through Hole
Supply Chain
Factory Lead Time 7 Weeks
