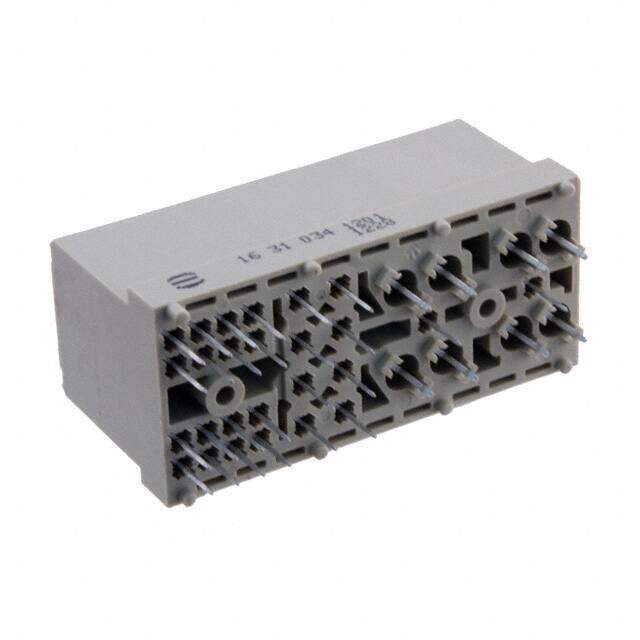

16310341201000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description
ATCA POWER BACKPLANE CONN 34PINS
PDF
/
Buying Options
Total Price: USD $15.85
Unit Price: USD $15.851726
≥1 USD $15.851726
≥10 USD $14.954459
≥100 USD $14.107984
≥500 USD $13.309417
≥1000 USD $12.556052
Inventory: 9232
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material PBT
Technical
Packaging Bulk
Series ATCA / mTCA
JESD-609 Code e4
Feature Mating Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Press-Fit
Connector Type Receptacle, Female Sockets
Number of Positions 34
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Gender Female
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts YES
Option GENERAL PURPOSE
Total Number of Contacts 34
Orientation Straight
Number of Positions Loaded All
Current Rating 16A
Number of Conductors ONE
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Body Length or Diameter 1.815 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.823 inch
UL Flammability Code 94V-0
Empty Shell NO
Body Depth 0.874 inch
Rated Current (Signal) 1A
Contact Resistance 8.5mOhm
Connector Style Power
Durability 250 Cycles
Insulator Color GRAY
Contact Layout, Typical 26 Signal, 8 Power
Connector Usage Backplane
Contact Arrangement S26P8
Dimensions
Length - Termination 0.176 inch
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
