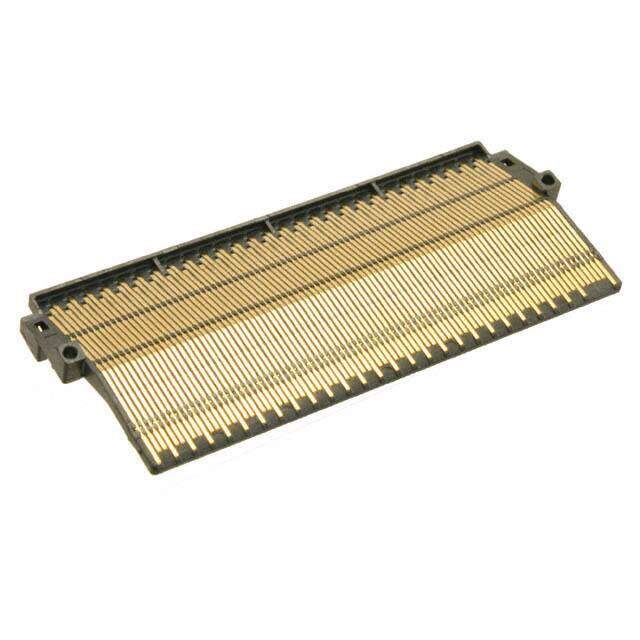

16251701301000
RoHS
/
Package /
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description
PLUG CONN PIGGYBACK BASIC SIDE
PDF
/
Buying Options
Total Price: USD $1339.02
Unit Price: USD $1339.021295
≥1 USD $1339.021295
≥10 USD $1294.991584
≥25 USD $1285.989649
≥50 USD $1277.050301
≥100 USD $1250.783845
≥500 USD $1161.359185
Inventory: 1154
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole, Right Angle
Technical
Packaging Bulk
Series ATCA / mTCA
Feature Board Guide
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Piggyback
Number of Positions 170
Number of Rows 1
Gender Male
Pitch 0.029 0.75mm
Orientation Right Angle
Depth 31.5mm
Number of Positions Loaded All
Contact Finish Gold
Connector Style MCH
Connector Usage Backplane-to-Daughtercard
Dimensions
Length 69.9mm
Width 7.59mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
