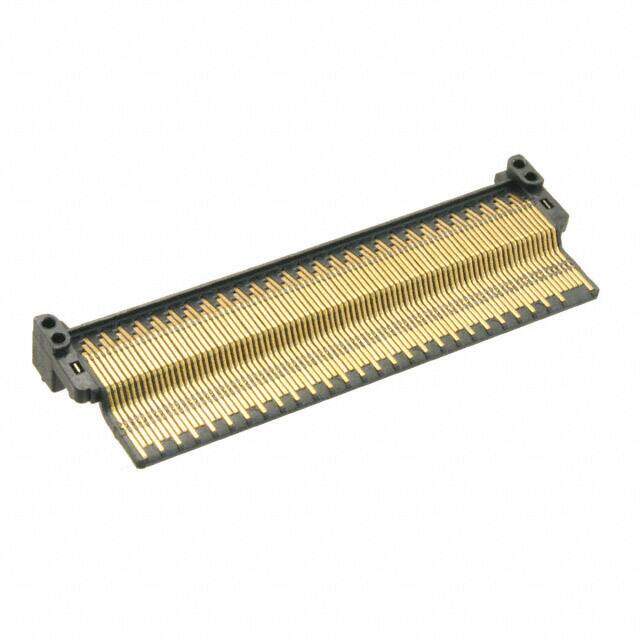

16241701301000
RoHS
/
Package /
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description
PLUG CONNECTOR MCH BASIC SIDE
PDF
/
Inventory: 7885
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole, Right Angle
Technical
Packaging Tray
Series ATCA / mTCA
Feature Board Guide
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Press-Fit
Connector Type Plug, Piggyback
Number of Positions 170
Number of Rows 1
Gender Male
Pitch 0.029 0.75mm
Orientation Right Angle
Depth 23mm
Number of Positions Loaded All
Contact Finish Gold
Connector Style MCH
Connector Usage Backplane-to-Daughtercard
Dimensions
Length 69.9mm
Width 7.62mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
