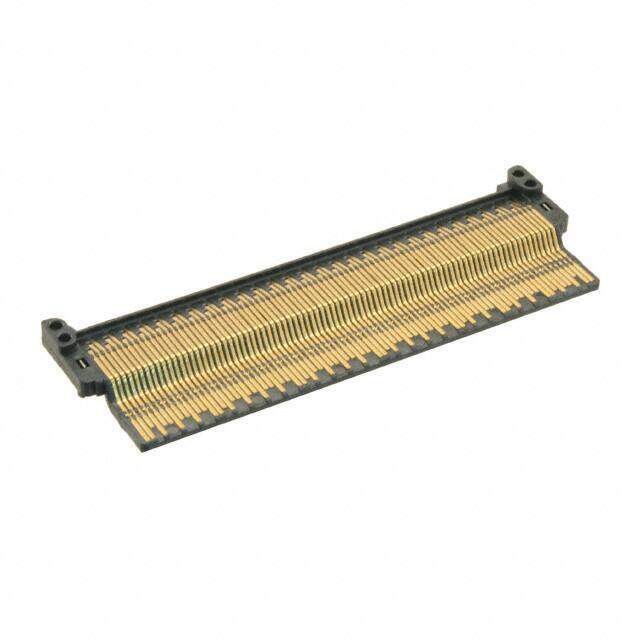

16231701301000
RoHS
/
Package /
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description
PLUG CONNECTOR AMC BASIC SIDE
PDF
/
Inventory: 2513
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 4.25mm
Length 69.9mm
Technical
Connector Usage Backplane-to-Daughtercard
Connector Style AdvancedMC
Max Current Rating 2.4A
Contact Resistance 25mOhm
Contact Finish Gold
Current Rating 1.52A
Number of Positions Loaded All
Depth 23mm
Orientation Right Angle
Pitch 0.029 0.75mm
HTS Code 8536.69.40.40
Voltage - Rated 12V
Gender Male
Number of Rows 1
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Number of Positions 170
Connector Type Plug, Piggyback
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Board Guide
Series ATCA / mTCA
Packaging Bulk
Physical
Housing Material Polymer
Mounting Type Through Hole, Right Angle
Mount Through Hole
