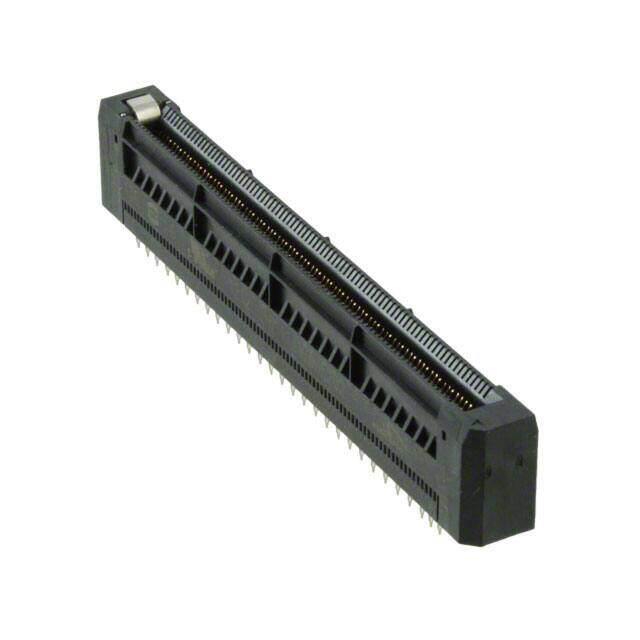

16111705202000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description
AdvancedMC Connectors for MicroTCA (uTCA) and AdvancedTCA (ATCA) 170P AMC CONNECTOR FOR MICROTCA
PDF
/
Inventory: 3945
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material NOT SPECIFIED
Mount Through Hole
Mounting Type Through Hole
Insulation Material Polymer
Weight 9.899994g
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Series ATCA / mTCA
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Press-Fit
ECCN Code EAR99
Connector Type Header, Male Pins
Number of Positions 170
Color Black
Number of Rows 2
Gender Receptacle
Additional Feature ROHS COMPLIANT
HTS Code 8536.69.80.00
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.029 0.75mm
Total Number of Contacts 170
Orientation Straight
Depth 7.45mm
Number of Positions Loaded All
Current Rating 1.52A
Number of Conductors ONE
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Number Of PCB Rows 5
PCB Contact Pattern RECTANGULAR
Rated Current (Signal) 1.5A
Contact Style BELLOWED TYPE
Insulation Resistance 100000000Ohm
Row Spacing 1.5 mm
Connector Style AdvancedMC
Contact Pattern RECTANGULAR
Insertion Force-Max .5838 N
Connector Usage Backplane-to-Daughtercard
Dimensions
Length 74.8mm
Width 12.85mm
Contact Finish Thickness Flash
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
