16041705106000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description

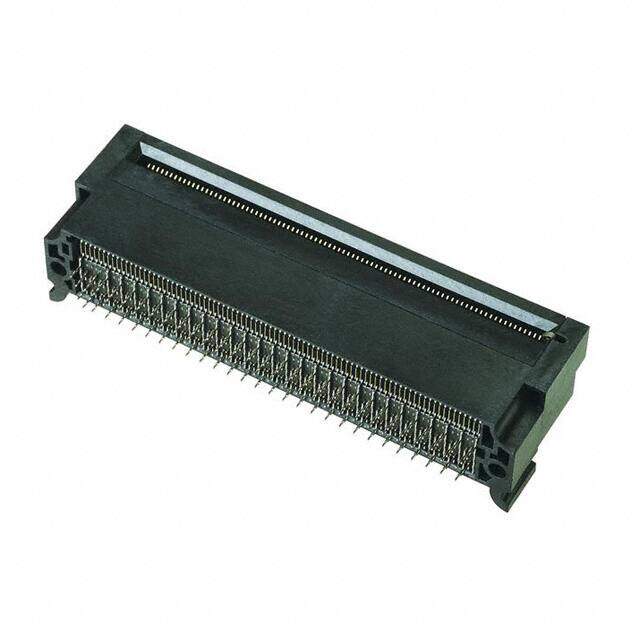

Conn Advanced TCA M 170 POS 2.25mm Press Fit ST Thru-Hole
PDF
/
Inventory: 7004
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness Flash
Width 21.85mm
Length 75mm
Technical
Connector Usage Backplane-to-Daughtercard
Contact Pattern RECTANGULAR
Connector Style AdvancedMC
Row Spacing 1.5 mm
Contact Resistance 90mOhm
Contact Style BELLOWED TYPE
Rated Current (Signal) 1.5A
Body Breadth 0.86 inch
PCB Contact Pattern STAGGERED
Number Of PCB Rows 5
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Number of Conductors ONE
Number of Positions Loaded All
Depth 8.6mm
Orientation Straight
Total Number of Contacts 170
Pitch 0.029 0.75mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
HTS Code 8536.69.80.00
Gender Receptacle
Number of Rows 2
Color Black
Number of Positions 170
Connector Type Header, Male Pins
ECCN Code EAR99
Termination Press-Fit
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series ATCA / mTCA
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Weight 34.68g
Insulation Material Polymer
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material NOT SPECIFIED
