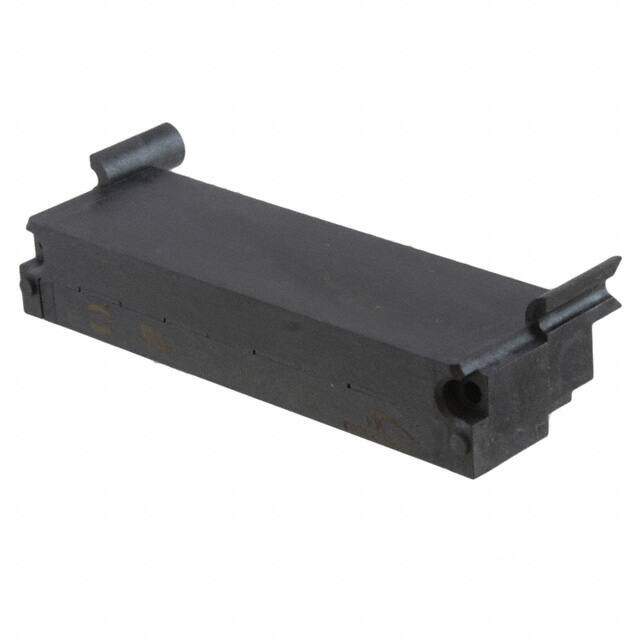

16041705104000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description
Micro TCA Connectors 170P TYPE B+ W/PEG
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material NOT SPECIFIED
Mount Through Hole
Mounting Type Through Hole, Right Angle
Insulation Material Polymer
Technical
Operating Temperature -55°C~105°C
Packaging Box
Series ATCA / mTCA
Feature Board Guide
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Press-Fit
Connector Type Header, Male Pins
Number of Positions 170
Color Black
Number of Rows 2
Gender Receptacle
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.029 0.75mm
Total Number of Contacts 170
Orientation Straight
Number of Positions Loaded All
Number of Conductors ONE
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Number Of PCB Rows 5
PCB Contact Pattern STAGGERED
Body Breadth 0.86 inch
Rated Current (Signal) 1.5A
Contact Style BELLOWED TYPE
Contact Resistance 90mOhm
Row Spacing 1.5 mm
Connector Style AdvancedMC
Contact Pattern RECTANGULAR
Connector Usage Backplane-to-Daughtercard
Dimensions
Length 74.8mm
Width 28.25mm
Contact Finish Thickness Flash
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
