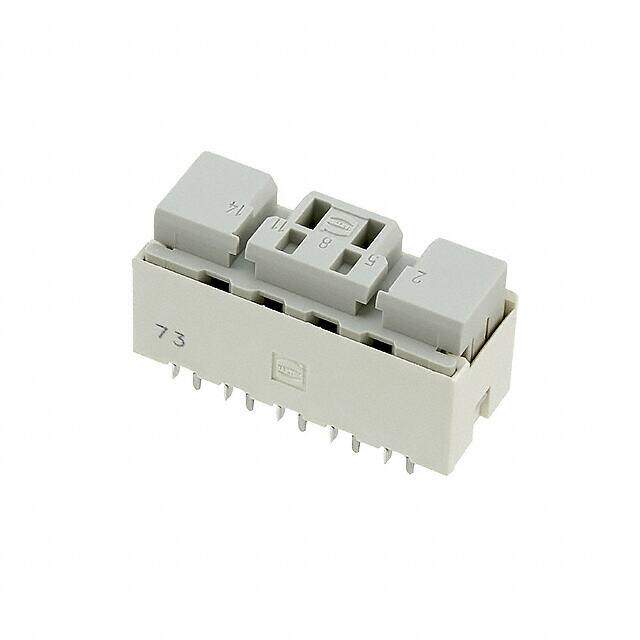

07111000026
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description
Conn Power 5 POS Press Fit ST Thru-Hole 20 Terminal 1 Port
PDF
/
Inventory: 4956
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 26 Weeks
Physical
Contact Material NOT SPECIFIED
Mount Through Hole
Mounting Type Through Hole
Housing Material Polymer
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Feature Board Guide
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 20
Termination Press-Fit
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 10
Color Natural
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Option GENERAL PURPOSE
Pitch 6.25mm
Orientation Straight
Depth 14.9mm
Number of Positions Loaded All
Current Rating 3A
Contact Finish Gold
Contact Gender Female
Connector Style Coax
Number of Ports 1
Contact Layout, Typical 10 Coax
Connector Usage Backplane-to-Daughtercard
Dimensions
Length 37.3mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
