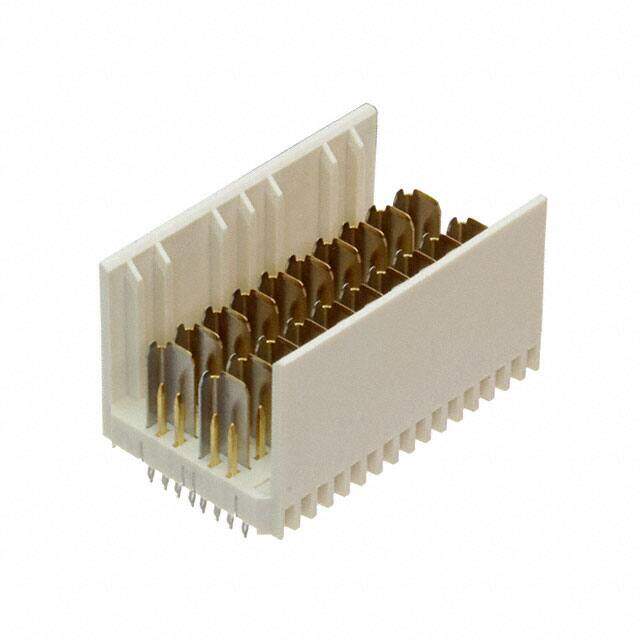

500-040-231-J01
RoHS
/
Package /
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description
ZD+ CONNECTOR, 2.0MM HARD METRIC
PDF
/
Buying Options
Total Price: USD $8.47
Unit Price: USD $8.46962
≥1 USD $8.46962
≥10 USD $7.990206
≥100 USD $7.537935
≥500 USD $7.111252
≥1000 USD $6.708731
Inventory: 1871
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mounting Type Through Hole
Technical
Operating Temperature -65°C~105°C
Packaging Tube
Series 500
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Press-Fit
Connector Type Header, Male Pins and Blades
Number of Positions 40
Number of Rows 4
Voltage - Rated 250VAC
Current Rating (Amps) 0.060A
Pitch 0.098 2.50mm
Number of Positions Loaded All
Contact Finish Gold
Connector Style ZD Plus
Contact Layout, Typical 20 Differential Pairs
Number of Columns 10
Dimensions
Contact Finish Thickness Flash
Compliance
Material Flammability Rating UL94 V-0
