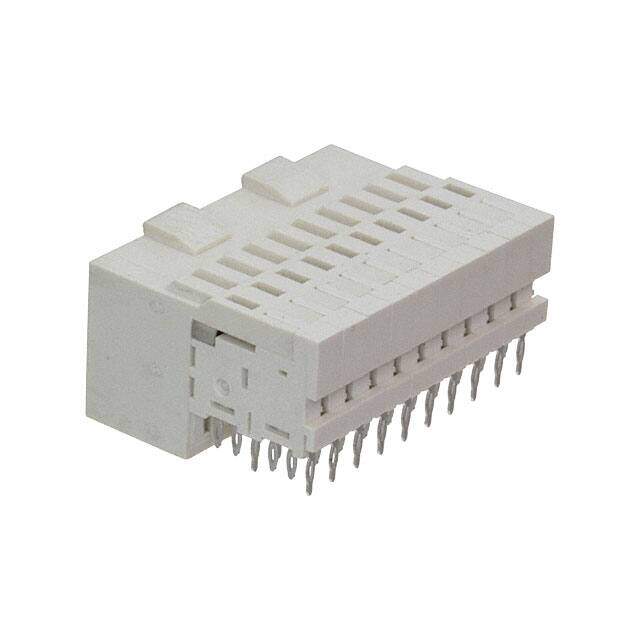

500-040-225-E02
RoHS
/
Package /
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description
ZD CONNECTOR, 2.0 MM HARD METRIC
PDF
/
Buying Options
Total Price: USD $9.52
Unit Price: USD $9.52357
≥1 USD $9.52357
≥10 USD $8.984502
≥100 USD $8.475937
≥500 USD $7.996169
≥1000 USD $7.543561
Inventory: 5705
Minimum: 1
-
+
Technical Details
Technical
Number of Columns 10
Contact Layout, Typical 20 Differential Pairs
Connector Style ZD
Contact Finish Gold
Number of Positions Loaded All
Pitch 0.098 2.50mm
Current Rating (Amps) 0.070A
Voltage - Rated 250VAC
Number of Rows 4
Number of Positions 40
Connector Type Receptacle, Female Sockets
Termination Press-Fit
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 500
Packaging Tube
Operating Temperature -65°C~105°C
Dimensions
Contact Finish Thickness Flash
Compliance
Material Flammability Rating UL94 V-0
Physical
Mounting Type Board Edge, Through Hole, Right Angle
Supply Chain
Factory Lead Time 15 Weeks
