09063482951
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Backplane Connectors - DIN 41612
Description

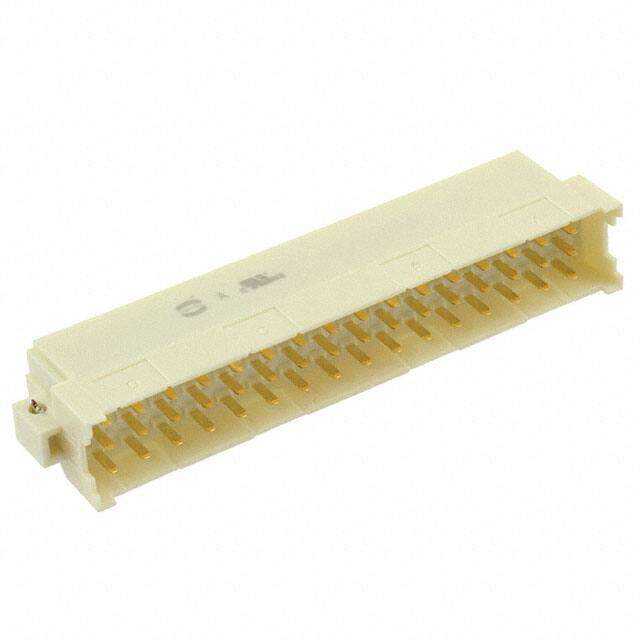

DIN 41612 Connectors DIN-POWER F048MR-3,0C1-1-CLIP
PDF
/
Buying Options
Total Price: USD $11.16
Unit Price: USD $11.159245
≥1 USD $11.159245
≥10 USD $10.527587
≥100 USD $9.931688
≥500 USD $9.369514
≥1000 USD $8.839166
Inventory: 8117
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length - Tail 3mm
Technical
Name of Rows Loaded Z,B,D
Level, Class 1
Durability 500 Cycles
PCB Contact Row Spacing 2.54 mm
Polarization Key POLARIZED HOUSING
Rated Current (Signal) 6A
Body Depth 0.866 inch
UL Flammability Code 94V-0
Body Breadth 0.579 inch
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 3
Reliability COMMERCIAL
Contact Finish Gold or Gold-Palladium
Reference Standard UL
Current Rating 6A
Number of Positions Loaded All
Style F
Total Number of Contacts 48
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Number of Rows 3
Number of Positions 48
Connector Type Header, Male Pins
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock
Series DIN 41612
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Material - Insulation Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Supply Chain
Factory Lead Time 7 Weeks
