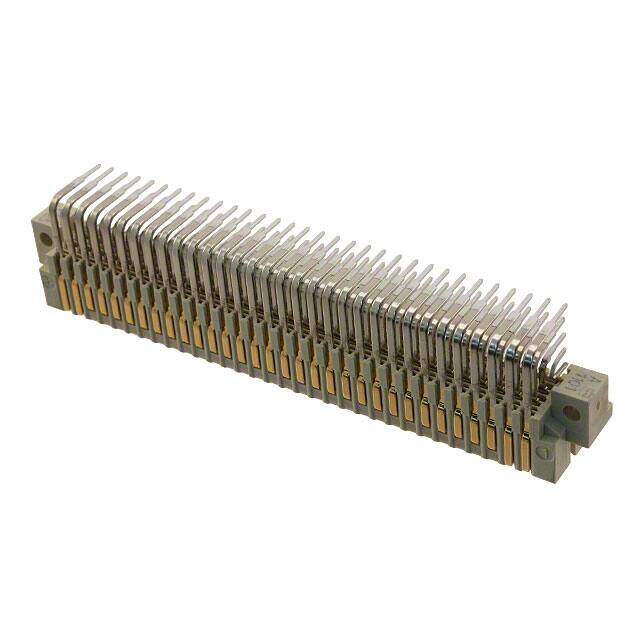

02011601101 image
Favorite
02011601101 image
Favorite

02011601101

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Backplane Connectors - DIN 41612
Description HARTING - 02 01 160 1101 - PLUG, DIN41612, 160WAY
PDF
/
Buying Options
Total Price: USD $23.59
Unit Price: USD $23.5928
≥1 USD $23.5928
≥10 USD $20.66152
≥100 USD $19.769024
≥500 USD $19.131376
≥1000 USD $18.493728
≥3000 USD $17.47335
Inventory: 1199
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Material Gold, Nickel
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Insulation Material GLASS FILLED THERMOPLASTIC
Weight 28.349523g
Manufacturer Package Identifier 02 01 160 1101

Technical

Packaging Tube
Series DIN 41612
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Male Pins
Number of Positions 160 (96 + 64 Ground)
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Number of Rows 5
Gender Male
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.100 2.54mm
Orientation Right Angle
Depth 20.28mm
Number of Positions Loaded All
Current Rating 1A
Reference Standard UL, CSA
Reliability COMMERCIAL
Approval Agency IEC
Number Of PCB Rows 5
Lead Pitch 2.54mm
Number of Contacts 160
PCB Contact Pattern RECTANGULAR
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.437 inch
UL Flammability Code 94V-0
Rated Current (Signal) 2A
Contact Style SQ PIN-SKT
Body/Shell Style RECEPTACLE
Max Current Rating 1A
Polarization Key ENDS
Level, Class 1
Name of Rows Loaded Z,A,B,C,D

Dimensions

Height 11.1mm
Length 93.9mm

Compliance

Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
