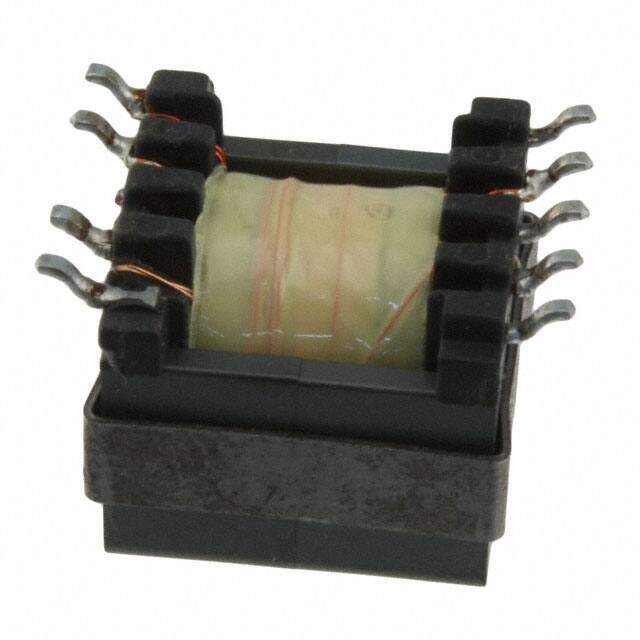

TTC-511
RoHS
/
Package /
Category Transformers / Audio Transformers
Description
TRANSF TELE COUP 600:287 OHM SMD
PDF
/
Inventory: 4869
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.193 4.90mm
Height 4.9mm
Technical
DC Resistance (DCR) - Secondary 175Ohm
DC Resistance (DCR) - Primary 150Ohm
Impedance - Secondary (Ω) 287
Frequency Response ±0.2dB
Impedance - Primary (Ω) 600
Return Loss 25dB Min @ 300Hz ~ 3.5kHz
Turns Ratio - Primary:Secondary 1:1
Transformer Type TELECOM TRANSFORMER
Insertion Loss (dB) 3.85 dB
Insertion Loss 3.8dB Max @ 1kHz
Frequency Range 300Hz~3.5kHz
DC Resistance (DCR) 150Ohm
Voltage - Isolation 1875VRMS @ 1 Second
Approval Agency UL1950, UL60950
Termination Style Gull Wing
Reach Compliance Code unknown
ECCN Code EAR99
Termination Gull Wing
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 0.390Lx0.701W 9.90mmx17.80mm
Series TTC
Published 2004
Packaging Tape & Reel (TR)
Physical
Number of Pins 4
Mounting Type Surface Mount
Mount Surface Mount
