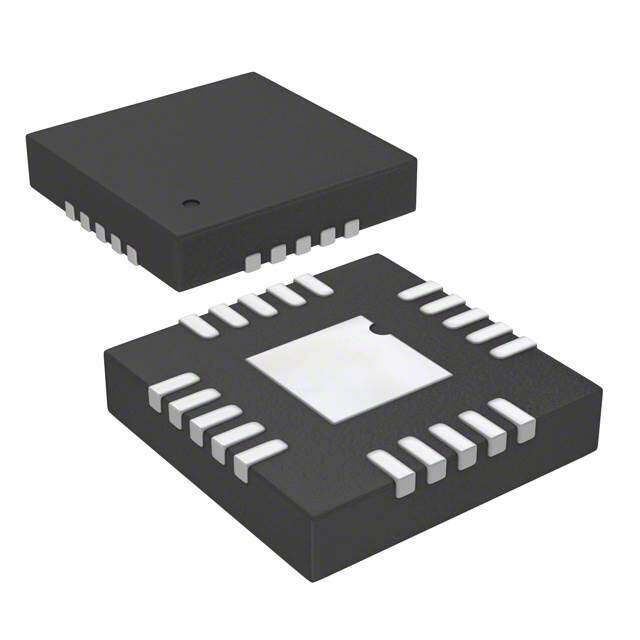

TS4657IQT
RoHS
RoHS compliant
RoHS compliantPackage 20-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Audio Special Purpose
Description
TS4657 e3 Single 20-VFQFN Exposed Pad audio IC 4mm 8mA 5V 10kOhm
PDF
/
Buying Options
Total Price: USD $3.62
Unit Price: USD $3.623604
≥1 USD $3.623604
≥200 USD $1.446816
≥500 USD $1.398239
≥1000 USD $1.374606
Inventory: 1530
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 4mm
Length 4mm
Height Seated (Max) 1mm
Technical
Load Impedance 10kOhm
Consumer IC Type AUDIO AMPLIFIER
Power Consumption 22mW
Power Supply Rejection Ratio (PSRR) 80dB
Resolution 2 B
Bandwidth 20 kHz
Supply Type Single
Nominal Supply Current 8mA
Interface I2S
Number of Channels 2
Supply Voltage-Min (Vsup) 3V
Operating Supply Voltage 5V
Function Line Driver
Base Part Number TS4657
Terminal Pitch 0.5mm
Peak Reflow Temperature (Cel) 260
Terminal Position QUAD
Voltage - Supply 3V~5.5V
Applications Pre-Amplifier
Terminal Finish Matte Tin (Sn) - annealed
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 20
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 20
Package / Case 20-VFQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
