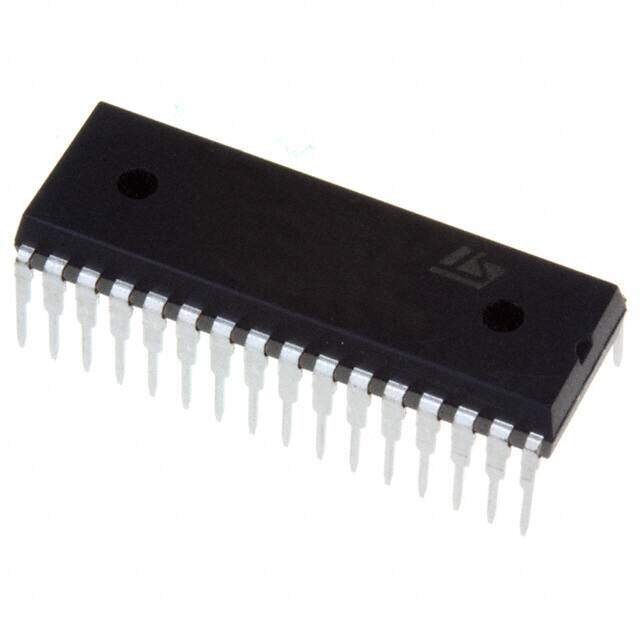

TDA7442
RoHS
RoHS compliant
RoHS compliantPackage 32-SDIP (0.400, 10.16mm)
Category Integrated Circuits (ICs) / Audio Special Purpose
Description
TDA7442 e3 32-SDIP (0.400 10.16mm) BICMOS audio circuit 10.16mm 9V 0.5dB -10C~70C TA
PDF
/
Buying Options
Total Price: USD $2.15
Unit Price: USD $2.14605
≥1 USD $2.14605
≥10 USD $1.7613
≥100 USD $1.7062
≥500 USD $1.6511
≥1000 USD $1.596
Inventory: 38186
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 10.16mm
Height Seated (Max) 5.08mm
Technical
Channel Separation 90 dB
Harmonic Distortion 0.01%
Number of Bands 2
Consumer IC Type TONE CONTROL CIRCUIT
Specifications 0.5dB
Interface I2C
Number of Channels 2
Supply Voltage-Min (Vsup) 7V
Power Supplies 9V
Qualification Status Not Qualified
Function Audio Tone Processor
Base Part Number TDA7442
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 1.778mm
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
Voltage - Supply 7V~10.2V
Technology BICMOS
Subcategory Other Consumer ICs
Applications Consumer Audio
Terminal Finish Tin (Sn)
ECCN Code EAR99
Number of Terminations 32
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Packaging Tube
Operating Temperature -10°C~70°C TA
Physical
Number of Pins 32
Surface Mount NO
Package / Case 32-SDIP (0.400, 10.16mm)
Mounting Type Through Hole
