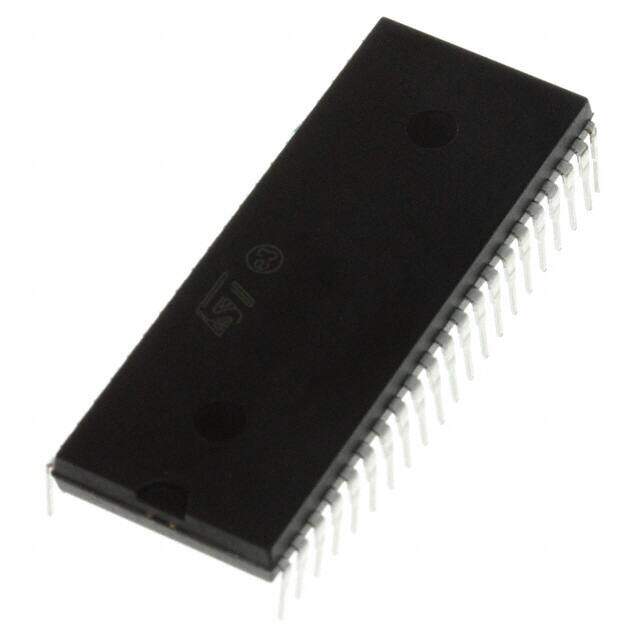

TDA7431
RoHS
RoHS compliant
RoHS compliantPackage 42-SDIP (0.600, 15.24mm)
Category Integrated Circuits (ICs) / Audio Special Purpose
Description
TDA7431 e3 42-SDIP (0.600 15.24mm) BICMOS audio IC 36.83mm 26mA 9V 0.5dB
PDF
/
Buying Options
Total Price: USD $15.01
Unit Price: USD $15.009073
≥1 USD $15.009073
≥195 USD $5.98945
≥494 USD $5.788576
≥1001 USD $5.690109
Inventory: 1161
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 36.83mm
Height Seated (Max) 5.08mm
Technical
Channel Separation 90 dB
Harmonic Distortion 0.01%
Number of Bands 2
Consumer IC Type TONE CONTROL CIRCUIT
Specifications 0.5dB
Nominal Supply Current 26mA
Interface I2C
Number of Channels 2
Supply Voltage-Min (Vsup) 7V
Power Supplies 9V
Qualification Status Not Qualified
Function Audio Tone Processor
Base Part Number TDA7431
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 1.778mm
Peak Reflow Temperature (Cel) 245
Terminal Position DUAL
Voltage - Supply 7V~10.2V
Technology BICMOS
Subcategory Audio Control ICs
Applications Automotive Audio, Consumer Audio
Terminal Finish MATTE TIN
ECCN Code EAR99
Number of Terminations 42
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
JESD-609 Code e3
Packaging Tube
Operating Temperature 0°C~70°C TA
Physical
Number of Pins 42
Surface Mount NO
Package / Case 42-SDIP (0.600, 15.24mm)
Mounting Type Through Hole
