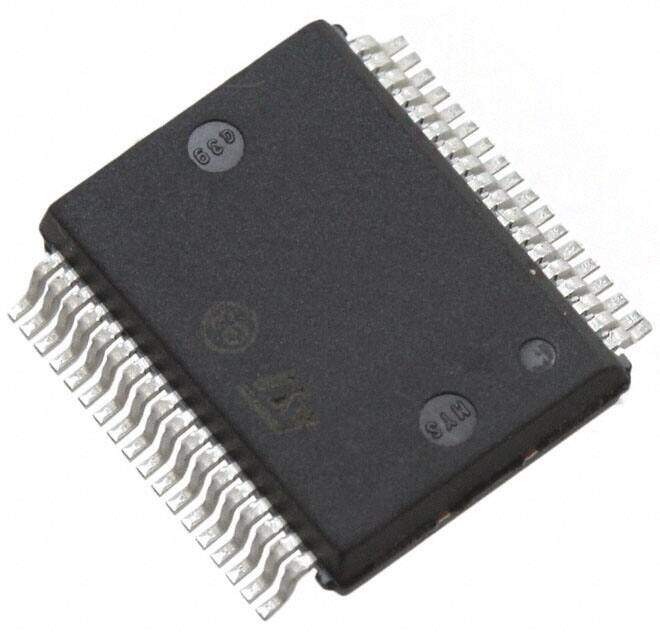

STA339BWS13TR image
Favorite
STA339BWS13TR image
Favorite

STA339BWS13TR

STMicroelectronics
RoHS
RoHS RoHS compliant
Package 36-BFSOP (0.295, 7.50mm Width) Exposed Pad
Category Integrated Circuits (ICs) / Audio Special Purpose
Description STA339 ALSO REQUIRES 3.3V DIGITAL SUPPLY e3 Sound Terminal? audio IC 7.6mm 15mA 3.318V 16W
PDF
/
Buying Options
Total Price: USD $4.67
Unit Price: USD $4.6728
≥1 USD $4.6728
≥10 USD $4.19936
≥100 USD $3.969856
≥500 USD $3.440712
≥1000 USD $3.264237
≥3000 USD $2.928974
Inventory: 1108
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Width 7.6mm
Length 10.5mm
Height 2.4mm

Technical

Consumer IC Type CONSUMER CIRCUIT
Gain 48 dB
Specifications Full Flexible Amplification
Output Power 16W
Nominal Supply Current 15mA
Interface I2C, I2S
Number of Channels 2
Supply Voltage-Min (Vsup) 4.5V
Power Supplies 3.318V
Function Fully Integrated Processor
Base Part Number STA339
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Voltage - Supply 4.5V~21.5V
Subcategory Other Consumer ICs
Additional Feature ALSO REQUIRES 3.3V DIGITAL SUPPLY
Applications Pre-Amplifier
Terminal Finish Matte Tin (Sn) - annealed
ECCN Code EAR99
Number of Terminations 36
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e3
Series Sound Terminal?
Packaging Tape & Reel (TR)
Operating Temperature -20°C~70°C TA

Physical

Number of Pins 36
Package / Case 36-BFSOP (0.295, 7.50mm Width) Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 6 months ago)
Factory Lead Time 6 Weeks
