PF0553.152NLT
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Arrays, Signal Transformers
Description

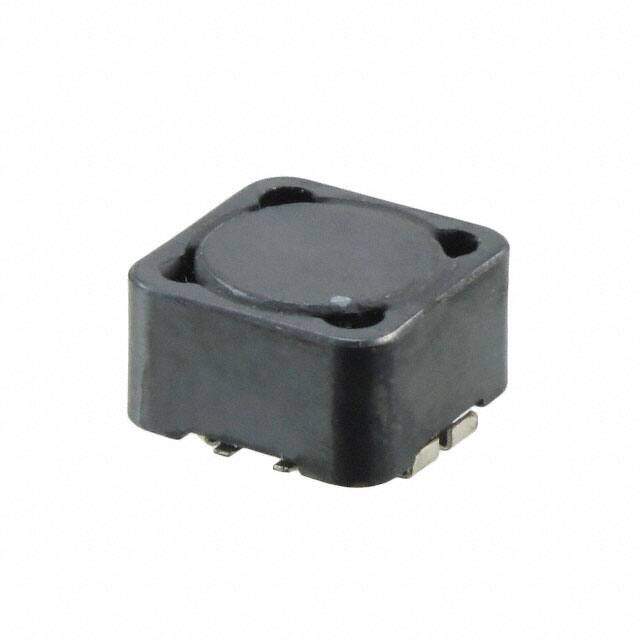

Active PARALLEL CONNECTED e3 WRAPAROUND signal transformer -40C~125C ±20% 0.1MHz 2.9mOhm Max
PDF
/
Inventory: 1611
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series PF0553NL
Size / Dimension 0.492Lx0.492W 12.50mmx12.50mm
Tolerance ±20%
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Termination SMD/SMT
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
HTS Code 8504.50.80.00
Shielding YES
Number of Functions 2
Inductance 1.4 μH
Test Frequency 0.1MHz
Current 6.7A
Max DC Current 13A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
DC Resistance (DCR) - Parallel 2.9mOhm Max
Special Feature PARALLEL CONNECTED
Inductance - Parallel 1.4 μH
Inductance - Series 5.4 μH
Number of Coils 2
DC Resistance (DCR) - Series 12mOhm Max
Current Rating - Parallel 13A
Inductance - Connected In Parallel 1.4μH
Current Saturation - Parallel 31A
Current Saturation - Series 16A
Dimensions
Height 0.315 8.00mm
Compliance
RoHS Status RoHS Compliant
