PF0552.474NLT image
Favorite
PF0552.474NLT image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Arrays, Signal Transformers
Description Active PARALLEL CONNECTED WRAPAROUND RoHS Compliant Array -40C~125C ±20% 20kHz 690mOhm Max
PDF
/
Inventory: 7207
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Shape/Size Description RECTANGULAR PACKAGE

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series PF0552NL
Size / Dimension 0.492Lx0.492W 12.50mmx12.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Termination SMD/SMT
ECCN Code EAR99
HTS Code 8504.50.80.00
Shielding YES
Number of Functions 2
Depth 12.5mm
Military Standard Not
Inductance 470 μH
Test Frequency 20kHz
Current 510mA
Max DC Current 1A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
DC Resistance (DCR) - Parallel 690mOhm Max
DC Current 1A
Special Feature PARALLEL CONNECTED
Inductance - Parallel 470 μH
Inductance - Series 1.9 mH
Number of Coils 2
DC Resistance (DCR) - Series 2.7Ohm Max
Current Rating - Parallel 1A

Dimensions

Height 0.236 6.00mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant

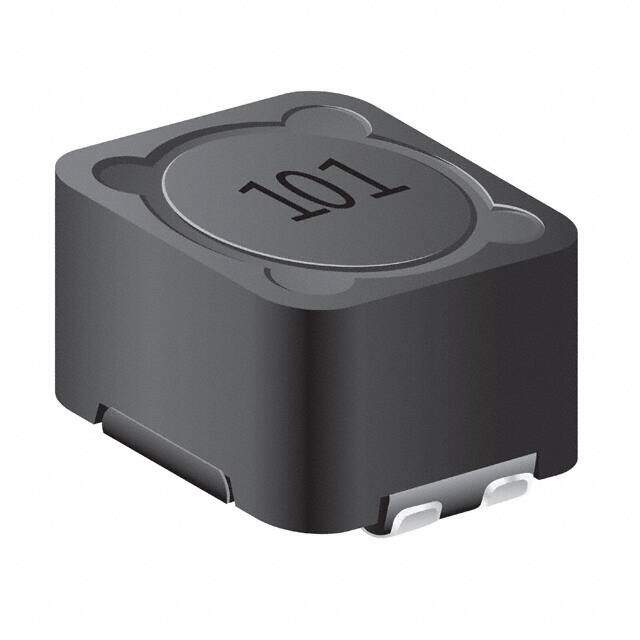

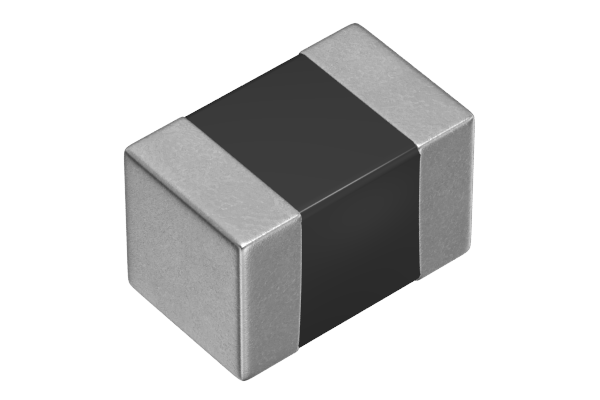

Alternative Model
