P0597NLT
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Arrays, Signal Transformers
Description

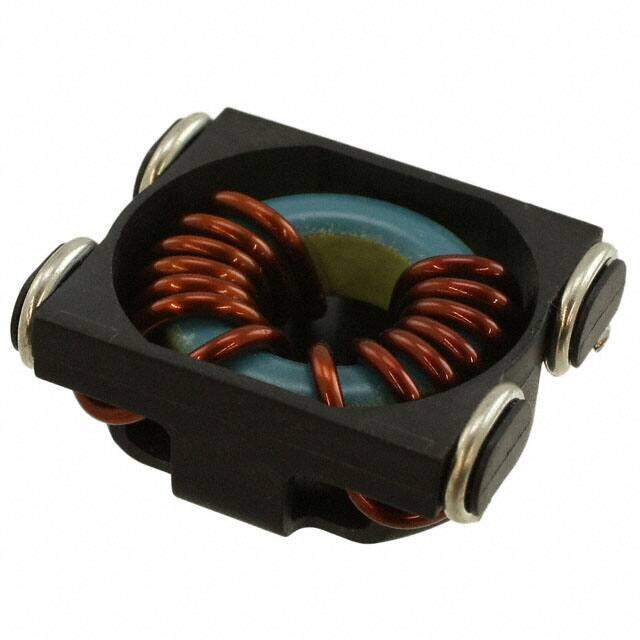

HCCI-80 Nonstandard 1.220Lx1.000W 30.99mmx25.40mm 2.45muH
PDF
/
Buying Options
Total Price: USD $4.88
Unit Price: USD $4.8752
≥1 USD $4.8752
≥10 USD $4.07792
≥100 USD $3.723456
Inventory: 89
Minimum: 1
-
+
Technical Details
Technical
Size / Dimension 1.220Lx1.000W 30.99mmx25.40mm
Tolerance ±15%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Termination SMD/SMT
ECCN Code EAR99
Resistance 2.5mOhm
HTS Code 8504.50.80.00
Packing Method TR
Shielding Unshielded
Number of Functions 2
Depth 25.4mm
Construction Toroid
Military Standard Not
Inductance 2.45 μH
Current 13.5A
Max DC Current 27A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL IN-LINE
Inductor Type GENERAL PURPOSE INDUCTOR
DC Resistance (DCR) - Parallel 2.5mOhm Max
DC Current 27A
Special Feature PARALLEL CONNECTED
Inductance - Parallel 2.45 μH
Inductance - Series 9.8 μH
Number of Coils 2
DC Resistance (DCR) - Series 10.1mOhm Max
Inductance - Connected In Series 22.8μH
Inductance - Connected In Parallel 5.7μH
Series HCCI-80
Published 2007
Packaging Tape & Reel (TR)
Operating Temperature -40°C~130°C
Physical
Core Material AMORPHOUS MAGNETIC
Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape ONE SURFACE
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Height 0.500 12.70mm
