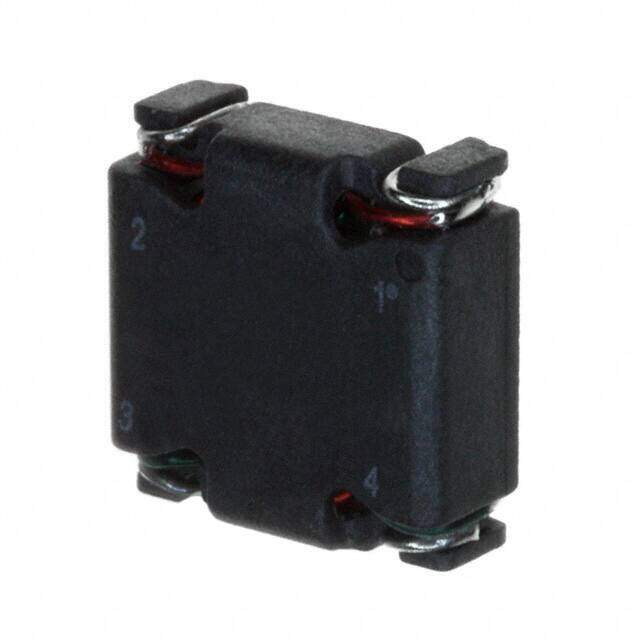

P0183NL
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Arrays, Signal Transformers
Description
Polecat Nonstandard 0.500Lx0.500W 12.70mmx12.70mm 91muH
PDF
/
Buying Options
Total Price: USD $4.58
Unit Price: USD $4.576
≥1 USD $4.576
≥10 USD $3.70392
≥100 USD $3.10948
≥500 USD $2.8809
≥1000 USD $2.835175
≥3000 USD $2.743726
Inventory: 303
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~130°C
Packaging Tube
Published 2007
Series Polecat
Size / Dimension 0.500Lx0.500W 12.70mmx12.70mm
Tolerance ±10%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Termination SMD/SMT
ECCN Code EAR99
Resistance 324mOhm
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 2
Depth 12.7mm
Inductance 91 μH
Current 1.54A
Max DC Current 1.2A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL IN-LINE
Inductor Type GENERAL PURPOSE INDUCTOR
DC Resistance (DCR) - Parallel 324mOhm Max
Special Feature PARALLEL CONNECTED
Inductance - Parallel 91 μH
Inductance - Series 364 μH
Number of Coils 2
DC Resistance (DCR) - Series 1.272Ohm Max
Current Rating - Series 640mA
Inductance - Connected In Series 364μH
Dimensions
Height 0.215 5.46mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
