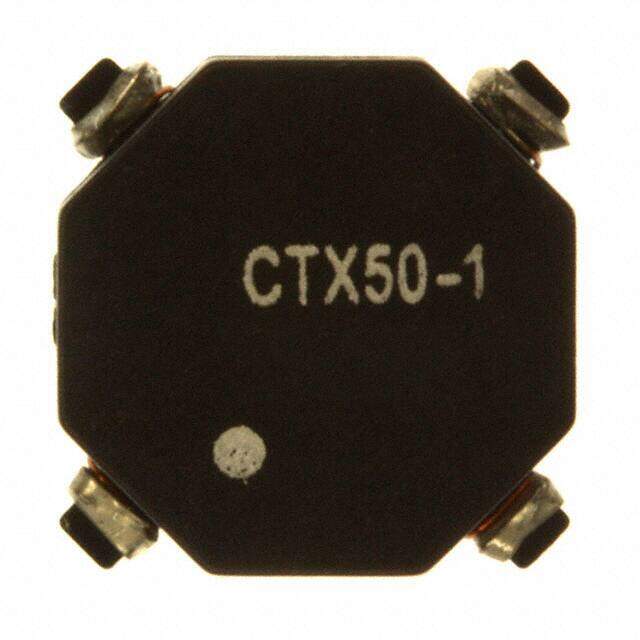

CTX50-1
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Arrays, Signal Transformers
Description
Obsolete Non-RoHS Compliant Surface Mount 1997 signal transformer -40C~85C ±20% 365mOhm Max 0.165 4.19mm
PDF
/
Buying Options
Total Price: USD $51.06
Unit Price: USD $51.05775
≥1 USD $51.05775
≥10 USD $41.89405
≥100 USD $40.584
≥500 USD $39.2749
≥1000 USD $37.9658
Inventory: 1110
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Height 0.165 4.19mm
Technical
Inductance - Connected In Parallel 50.63μH
Inductance - Connected In Series 202.5μH
Current Rating - Parallel 640mA
Current Rating - Series 320mA
DC Resistance (DCR) - Series 1.461Ohm Max
Number of Coils 2
DC Resistance (DCR) - Parallel 365mOhm Max
Shielding Unshielded
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±20%
Size / Dimension 0.450Lx0.450W 11.43mmx11.43mm
Series OCTA-PAC?
Published 1997
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Package / Case Nonstandard
Mounting Type Surface Mount
Alternative Model
