RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Arrays, Signal Transformers

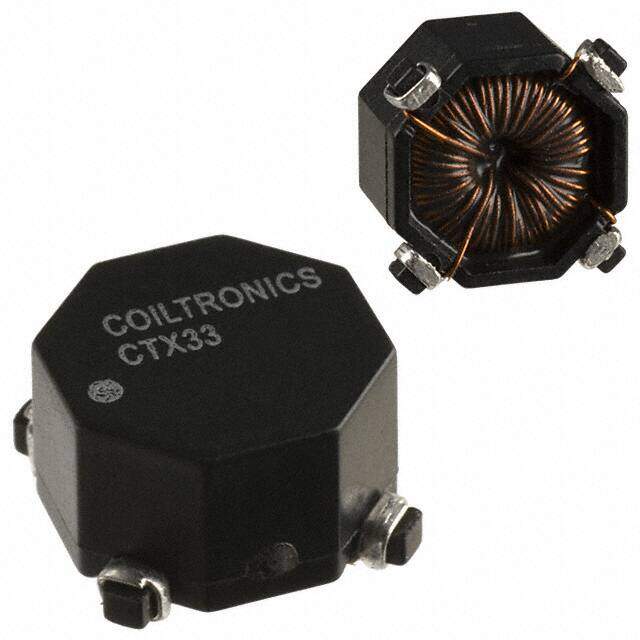

Description Obsolete Non-RoHS Compliant Surface Mount 1997 signal transformer -40C~85C ±20% 72mOhm Max 0.250 6.35mm
PDF
/
Inventory: 6155
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mounting Type Surface Mount
Package / Case Nonstandard

Technical

Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 1997
Series OCTA-PAC?
Size / Dimension 0.550Lx0.550W 13.97mmx13.97mm
Tolerance ±20%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Shielding Unshielded
DC Resistance (DCR) - Parallel 72mOhm Max
Number of Coils 2
DC Resistance (DCR) - Series 287mOhm Max
Current Rating - Series 900mA
Current Rating - Parallel 1.8A
Inductance - Connected In Series 132.5μH
Inductance - Connected In Parallel 33.12μH

Dimensions

Height 0.250 6.35mm

Compliance

RoHS Status Non-RoHS Compliant
