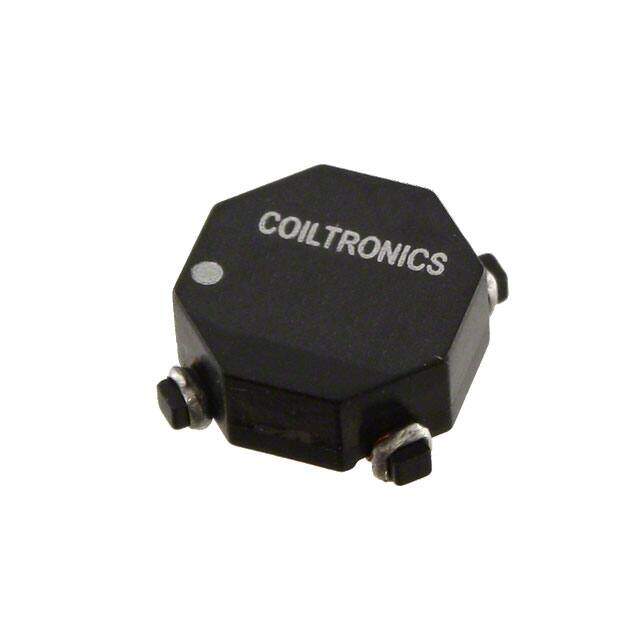

CTX33-1P
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Arrays, Signal Transformers
Description
Obsolete Non-RoHS Compliant Surface Mount 1997 Signal Transformer -40C~85C ±20% 250mOhm Max 0.165 4.19mm
PDF
/
Inventory: 4795
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Height 0.165 4.19mm
Technical
Inductance - Connected In Parallel 32.33μH
Inductance - Connected In Series 129.32μH
Current Rating - Parallel 800mA
Current Rating - Series 400mA
DC Resistance (DCR) - Series 1.001Ohm Max
Number of Coils 2
DC Resistance (DCR) - Parallel 250mOhm Max
Shielding Unshielded
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±20%
Size / Dimension 0.450Lx0.450W 11.43mmx11.43mm
Series Econo-Pac?
Published 1997
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Package / Case Nonstandard
Mounting Type Surface Mount
