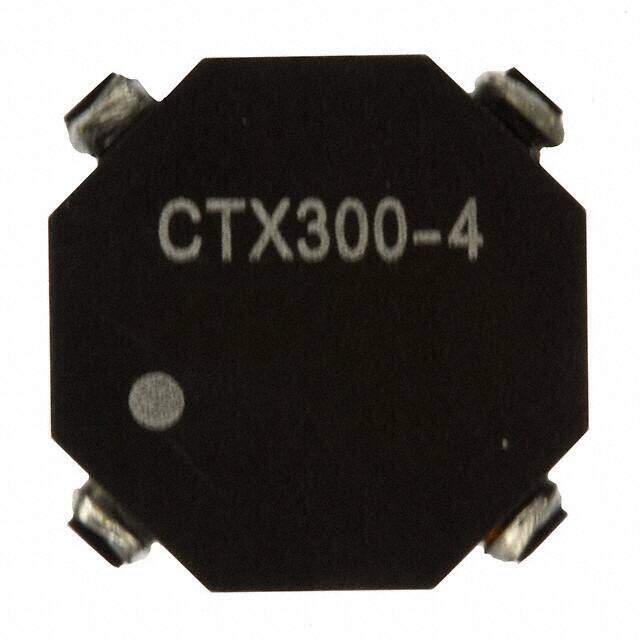

CTX300-4

Eaton - Electronics Division
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Arrays, Signal Transformers
Description Inductor Power Wirewound 298.12uH/1192.46uH 20% 100KHz Amorphous Metal 620mA/310mA 0.672Ohm/2.687Ohm DCR T/R
PDF
/
Inventory: 3918
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status Non-RoHS Compliant

Dimensions

Height 0.250 6.35mm

Technical

Inductance - Connected In Parallel 298.12μH
Inductance - Connected In Series 1.2mH
Current Rating - Parallel 620mA
Current Rating - Series 310mA
DC Resistance (DCR) - Series 2.687Ohm Max
Number of Coils 2
DC Resistance (DCR) - Parallel 672mOhm Max
Shielding Unshielded
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±20%
Size / Dimension 0.550Lx0.550W 13.97mmx13.97mm
Series OCTA-PAC?
Published 2004
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C

Physical

Package / Case Nonstandard
Mounting Type Surface Mount

Alternative Model

CTX300-4-R

CTX300-4-R

Eaton - Electronics Division
