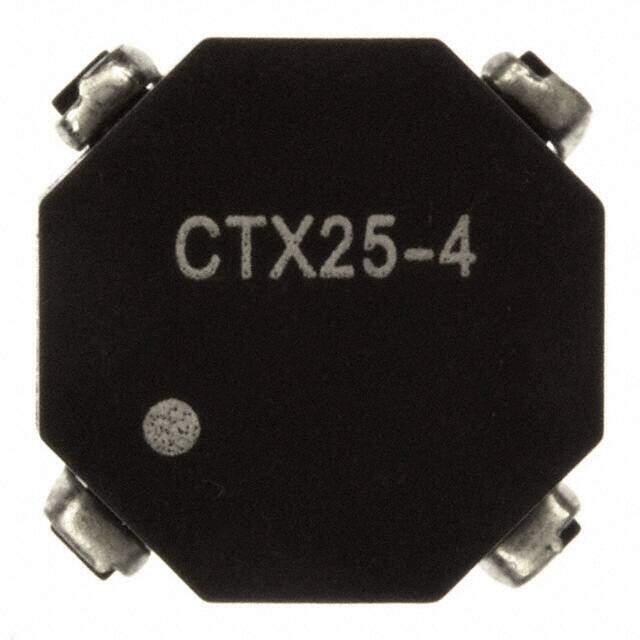

CTX25-4
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Arrays, Signal Transformers
Description
Obsolete Non-RoHS Compliant Surface Mount 1997 signal transformer -40C~85C ±20% 63mOhm Max 0.250 6.35mm
PDF
/
Buying Options
Total Price: USD $34.87
Unit Price: USD $34.86785
≥1 USD $34.86785
≥10 USD $28.60925
≥100 USD $27.7153
≥500 USD $26.82135
≥1000 USD $25.9274
Inventory: 1342
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 1997
Series OCTA-PAC?
Size / Dimension 0.550Lx0.550W 13.97mmx13.97mm
Tolerance ±20%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Shielding Unshielded
DC Resistance (DCR) - Parallel 63mOhm Max
Number of Coils 2
DC Resistance (DCR) - Series 253mOhm Max
Current Rating - Series 1A
Current Rating - Parallel 2A
Inductance - Connected In Series 103.68μH
Inductance - Connected In Parallel 25.92μH
Dimensions
Height 0.250 6.35mm
Compliance
RoHS Status Non-RoHS Compliant
