RoHS
/
Package Nonstandard

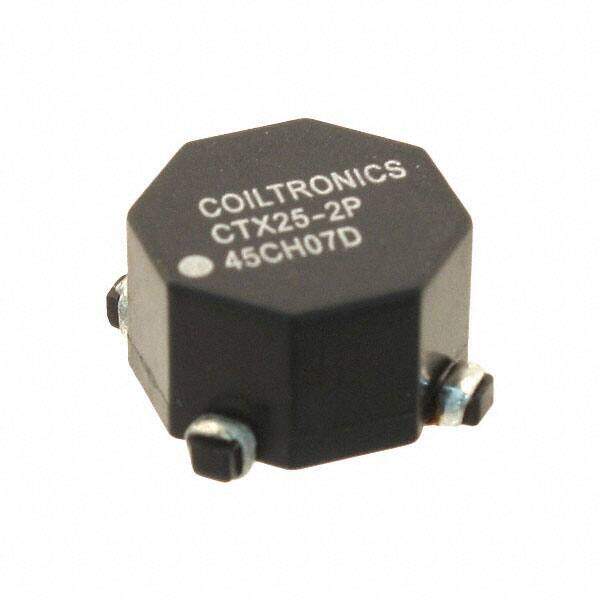

Category Inductors, Coils, Chokes / Arrays, Signal Transformers
Description Obsolete Surface Mount 1997 Tape & Reel (TR) signal transformer -40C~85C ±20% 109mOhm Max 0.235 5.97mm
PDF
/
Inventory: 9281
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Dimensions

Height 0.235 5.97mm

Technical

Inductance - Connected In Parallel 24.79μH
Inductance - Connected In Series 99.14μH
Current Rating - Parallel 1.4A
Current Rating - Series 700mA
DC Resistance (DCR) - Series 436mOhm Max
Number of Coils 2
DC Resistance (DCR) - Parallel 109mOhm Max
Shielding Unshielded
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±20%
Size / Dimension 0.450Lx0.450W 11.43mmx11.43mm
Series Econo-Pac?
Published 1997
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C

Physical

Package / Case Nonstandard
Mounting Type Surface Mount
