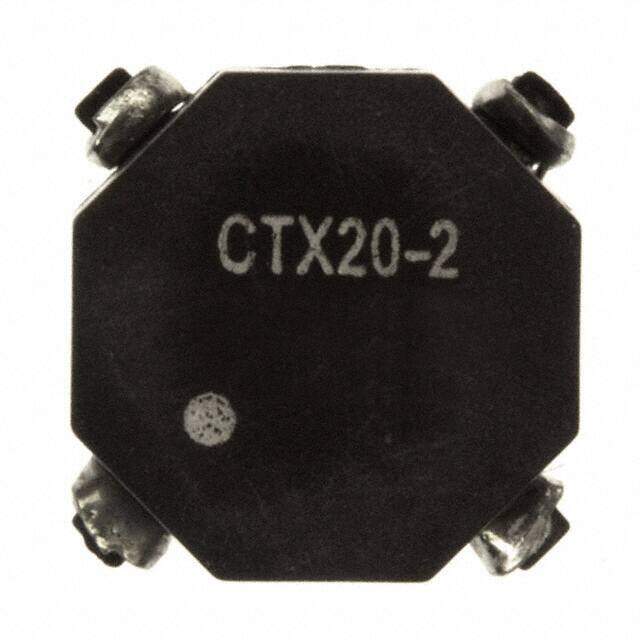

CTX20-2
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Arrays, Signal Transformers
Description
Obsolete Non-RoHS Compliant Surface Mount 1997 Array -40C~85C ±20% 107mOhm Max 0.235 5.97mm
PDF
/
Inventory: 2546
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Height 0.235 5.97mm
Technical
Inductance - Connected In Parallel 20.73μH
Inductance - Connected In Series 82.91μH
Current Rating - Parallel 1.3A
Current Rating - Series 650mA
DC Resistance (DCR) - Series 426mOhm Max
Number of Coils 2
DC Resistance (DCR) - Parallel 107mOhm Max
Shielding Unshielded
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±20%
Size / Dimension 0.450Lx0.450W 11.43mmx11.43mm
Series OCTA-PAC?
Published 1997
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Package / Case Nonstandard
Mounting Type Surface Mount
