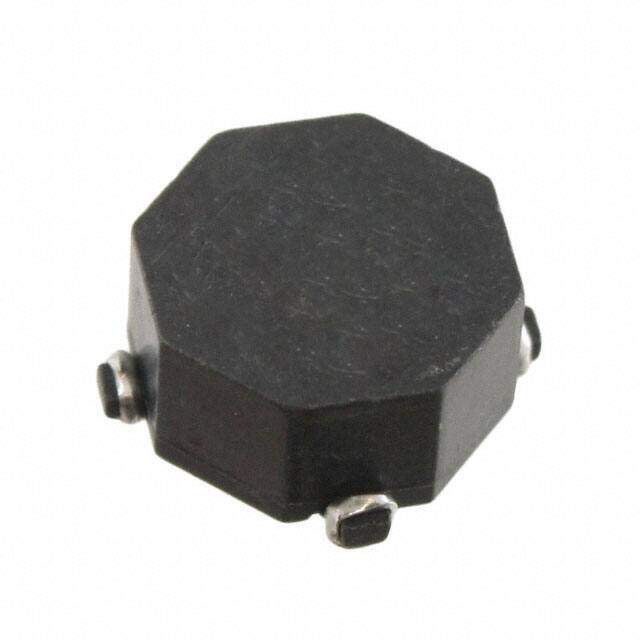

CTX15-4
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Arrays, Signal Transformers
Description
Ind Power 14.16uH/56.64uH 20% 100KHz Amorphous Metal 3A/1.5A T/R
PDF
/
Inventory: 9423
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 1997
Series OCTA-PAC?
Size / Dimension 0.550Lx0.550W 13.97mmx13.97mm
Tolerance ±20%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Shielding Unshielded
DC Resistance (DCR) - Parallel 24mOhm Max
Number of Coils 2
DC Resistance (DCR) - Series 96mOhm Max
Current Rating - Series 1.5A
Current Rating - Parallel 3A
Inductance - Connected In Series 56.64μH
Inductance - Connected In Parallel 14.16μH
Dimensions
Height 0.250 6.35mm
Compliance
RoHS Status Non-RoHS Compliant
