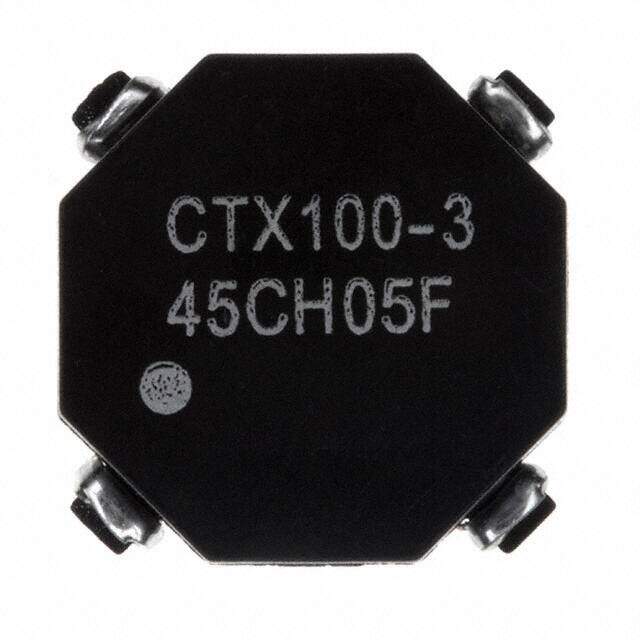

CTX100-3
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Arrays, Signal Transformers
Description
Obsolete Non-RoHS Compliant Surface Mount Contains Lead signal transformer -40C~85C ±20% 345mOhm Max 0.190 4.83mm
PDF
/
Inventory: 4023
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Width 13.97mm
Length 13.97mm
Height 0.190 4.83mm
Technical
Inductance - Connected In Parallel 101.4μH
Inductance - Connected In Series 405.6μH
Current Rating - Parallel 700mA
Current Rating - Series 350mA
DC Resistance (DCR) - Series 1.381Ohm Max
Number of Coils 2
Inductance - Series 405.6 μH
Inductance - Parallel 101.4 μH
DC Resistance (DCR) - Parallel 345mOhm Max
Current 350mA
Shielding Unshielded
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±20%
Size / Dimension 0.550Lx0.550W 13.97mmx13.97mm
Series OCTA-PAC?
Published 1997
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
