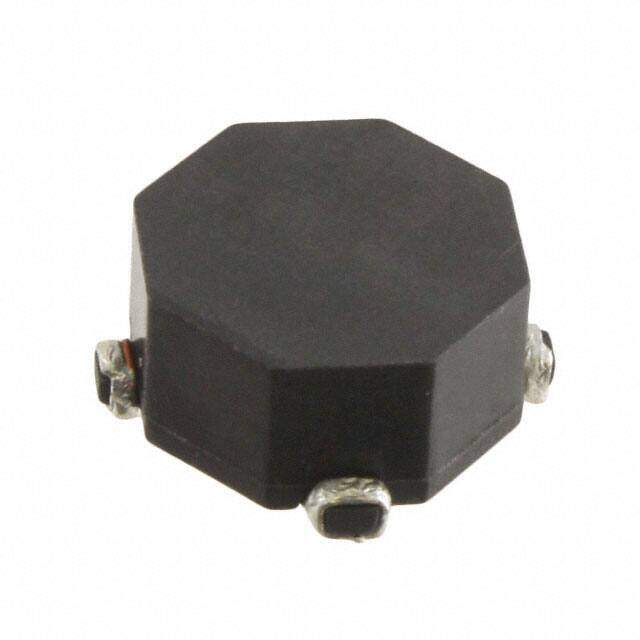

CTX10-4P
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Arrays, Signal Transformers
Description
Obsolete Non-RoHS Compliant Surface Mount 1997 signal transformer -40C~85C ±20% 47mOhm Max 0.250 6.35mm
PDF
/
Buying Options
Total Price: USD $3.41
Unit Price: USD $3.40955
≥1 USD $3.40955
≥10 USD $2.79775
≥100 USD $2.71035
≥500 USD $2.62295
≥1000 USD $2.53555
Inventory: 7766
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Height 0.250 6.35mm
Technical
Inductance - Connected In Parallel 9.88μH
Inductance - Connected In Series 39.53μH
Current Rating - Parallel 2.5A
Current Rating - Series 1.25A
DC Resistance (DCR) - Series 187mOhm Max
Number of Coils 2
DC Resistance (DCR) - Parallel 47mOhm Max
Shielding Unshielded
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±20%
Size / Dimension 0.550Lx0.550W 13.97mmx13.97mm
Series Econo-Pac?
Published 1997
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Package / Case Nonstandard
Mounting Type Surface Mount
Alternative Model
