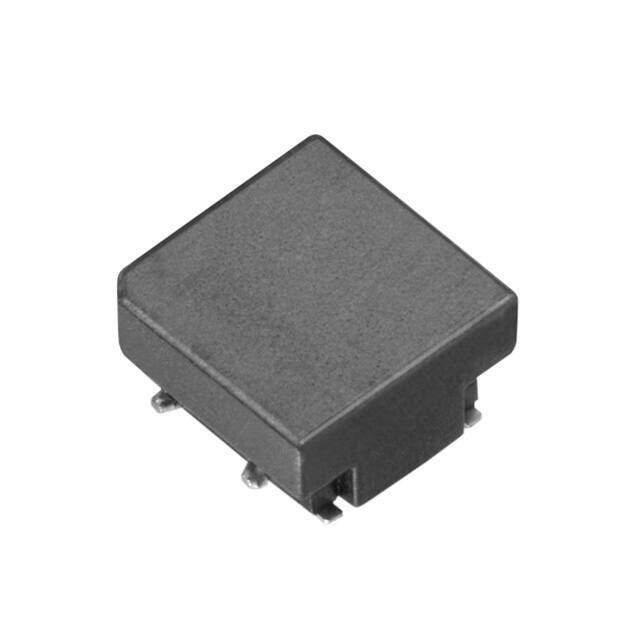

CMT4545-12M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Arrays, Signal Transformers
Description
Active PARALLEL CONNECTED e3 WRAPAROUND signal transformer ±20% 0.001MHz 20mOhm 0.250 6.35mm
PDF
/
Inventory: 6050
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height 0.250 6.35mm
Technical
Inductance - Connected In Series 42.4μH
Current Rating - Parallel 3.9A
Current Rating - Series 2A
DC Resistance (DCR) - Series 80mOhm
Number of Coils 2
Inductance - Series 42.4 μH
Inductance - Parallel 10 μH
Special Feature PARALLEL CONNECTED
Rated Current-Max 3.9A
DC Resistance (DCR) - Parallel 20mOhm
Inductor Type GENERAL PURPOSE INDUCTOR
Terminal Placement ON CIRCLE
Inductor Application POWER INDUCTOR
Test Frequency 0.001MHz
Inductance 10 μH
Depth 15.47mm
Number of Functions 2
Shielding NO
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Resistance 20mOhm
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.450Lx0.450W 11.43mmx11.43mm
Series CMT4545
Published 2005
Packaging Tape & Reel (TR)
Physical
Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
Alternative Model
