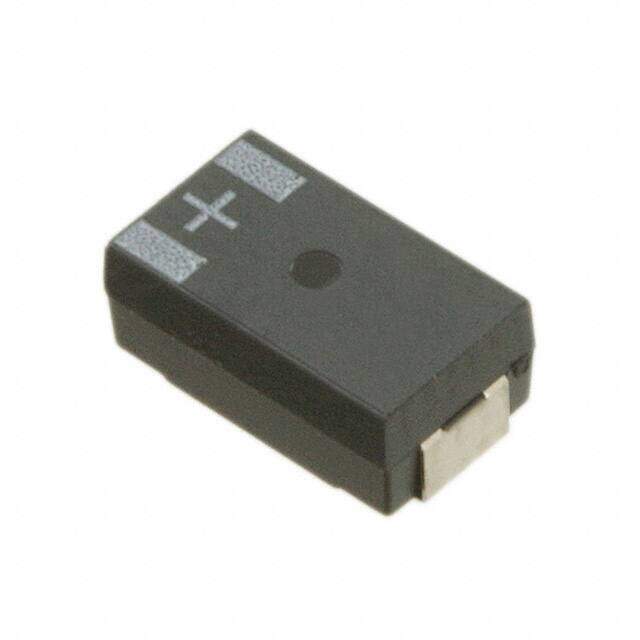

4SWZ180MR09
RoHS
RoHS compliant
RoHS compliantPackage 2917 (7343 Metric)
Category Capacitors / Aluminum - Polymer Capacitors
Description
2917 (7343Metric) PC-CON SWZ 4V 180muF ±20% 0.287Lx0.169W 7.30mmx4.30mm
PDF
/
Buying Options
Total Price: USD $5.3
Unit Price: USD $5.297552
≥1 USD $5.297552
≥200 USD $2.113769
≥500 USD $2.044185
≥1000 USD $2.008737
Inventory: 4617
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 2917 (7343 Metric)
Terminal Shape WRAPAROUND
Surface Mount Land Size 0.287Lx0.169W 7.30mmx4.30mm
Technical
Operating Temperature -55°C~105°C
Packaging Cut Tape (CT)
Published 2012
Series PC-CON, SWZ
Size / Dimension 0.287Lx0.169W 7.30mmx4.30mm
Tolerance ±20%
JESD-609 Code e4
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
ECCN Code EAR99
Type Polymer
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Applications General Purpose
Capacitance 180μF
Voltage - Rated DC 4V
Packing Method TR
Case Code (Metric) 7343
Case Code (Imperial) 2917
ESR (Equivalent Series Resistance) 9mOhm
Polarity POLARIZED
Rated (DC) Voltage (URdc) 4V
Lifetime @ Temp 2000 Hrs @ 105°C
Leakage Current 0.0288mA
Ripple Current 3A
Life (Hours) 2000 hours
Tan Delta 0.1
Ripple Current @ High Frequency 3A @ 100kHz
Ripple Current (AC) 3A
Dimensions
Height 1.9mm
Height Seated (Max) 0.075 1.90mm
Length 7.3mm
Width 4.3mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
