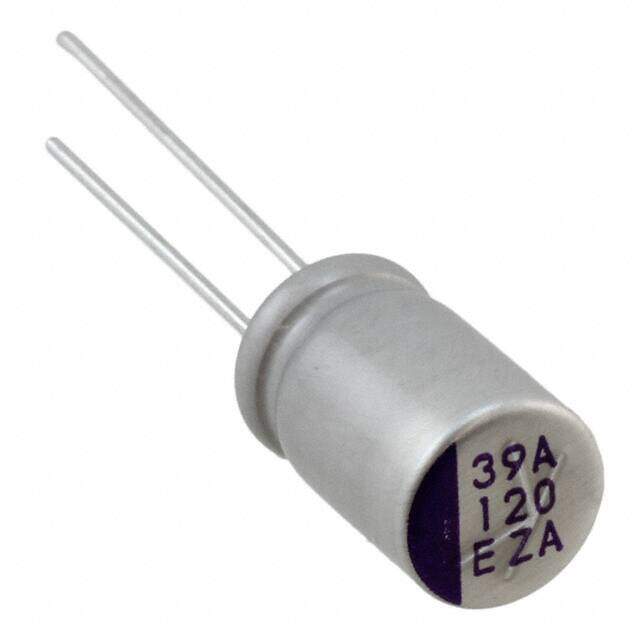

25PZA120M8X12.5
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum - Polymer Capacitors
Description
CAP ALUM POLY 120UF 20% 25V T/H
PDF
/
Buying Options
Total Price: USD $3.02
Unit Price: USD $3.018357
≥1 USD $3.018357
≥200 USD $1.205242
≥500 USD $1.164542
≥1000 USD $1.144849
Inventory: 3669
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Series PZA
Size / Dimension 0.315Dia 8.00mm
Tolerance ±20%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Polymer
Applications Automotive
Voltage - Rated 25V
Capacitance 120μF
Lead Pitch 3.5052mm
ESR (Equivalent Series Resistance) 27mOhm
Lead Spacing 0.138 3.50mm
Lifetime @ Temp 3000 Hrs @ 105°C
Ripple Current 2.4A
Life (Hours) 3000 hours
Ripple Current @ Low Frequency 120mA @ 120Hz
Ripple Current @ High Frequency 2.4A @ 100kHz
Dimensions
Height Seated (Max) 0.492 12.50mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
