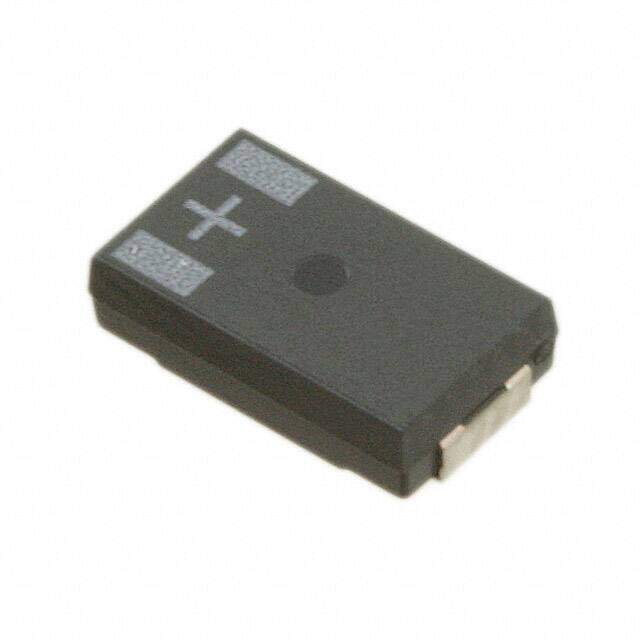

2.5SXB220M
RoHS
RoHS compliant
RoHS compliantPackage 2917 (7343 Metric)
Category Capacitors / Aluminum - Polymer Capacitors
Description
2917 (7343Metric) PC-CON SXB 2.5V 220muF ±20% 0.287Lx0.169W 7.30mmx4.30mm
PDF
/
Inventory: 5224
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height Seated (Max) 0.075 1.90mm
Height 1.9mm
Technical
Ripple Current (AC) 3A
Ripple Current @ High Frequency 3A @ 100kHz
Tan Delta 0.1
Life (Hours) 2000 hours
Ripple Current 3A
Leakage Current 0.022mA
Lifetime @ Temp 2000 Hrs @ 105°C
Polarity POLARIZED
ESR (Equivalent Series Resistance) 13mOhm
Case Code (Imperial) 2917
Case Code (Metric) 7343
Reach Compliance Code unknown
Voltage - Rated DC 2.5V
Capacitance 220μF
Applications General Purpose
Type Polymer
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Tolerance ±20%
Size / Dimension 0.287Lx0.169W 7.30mmx4.30mm
Series PC-CON, SXB
Packaging Cut Tape (CT)
Operating Temperature -55°C~105°C
Physical
Surface Mount Land Size 0.287Lx0.169W 7.30mmx4.30mm
Terminal Shape WRAPAROUND
Package / Case 2917 (7343 Metric)
Mounting Type Surface Mount
Mount Surface Mount
