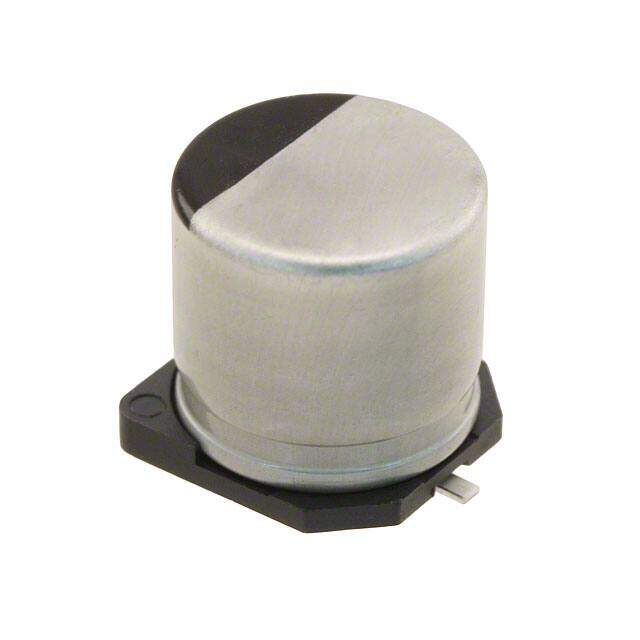

EEH-ZE1E331P
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - SMD
Category Capacitors / Aluminum - Polymer Capacitors
Description
ZE Radial Can - SMD aluminum capacitor 0.394Dia 10.00mm ±20% 330muF 25V
PDF
/
Buying Options
Total Price: USD $1.97
Unit Price: USD $1.9712
≥1 USD $1.9712
≥10 USD $1.51448
≥100 USD $1.39128
≥500 USD $1.15368
Inventory: 1076
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.413 10.50mm
Technical
Ripple Current @ High Frequency 900mA @ 100kHz
Ripple Current @ Low Frequency 135mA @ 100Hz
Lifetime @ Temp 2000 Hrs @ 145°C
ESR (Equivalent Series Resistance) 20mOhm
Capacitance 330μF
Voltage - Rated 25V
Applications Automotive
Type Hybrid
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.394Dia 10.00mm
Series ZE
Packaging Tape & Reel (TR)
Operating Temperature -55°C~145°C
Physical
Surface Mount Land Size 0.406Lx0.406W 10.30mmx10.30mm
Package / Case Radial, Can - SMD
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
