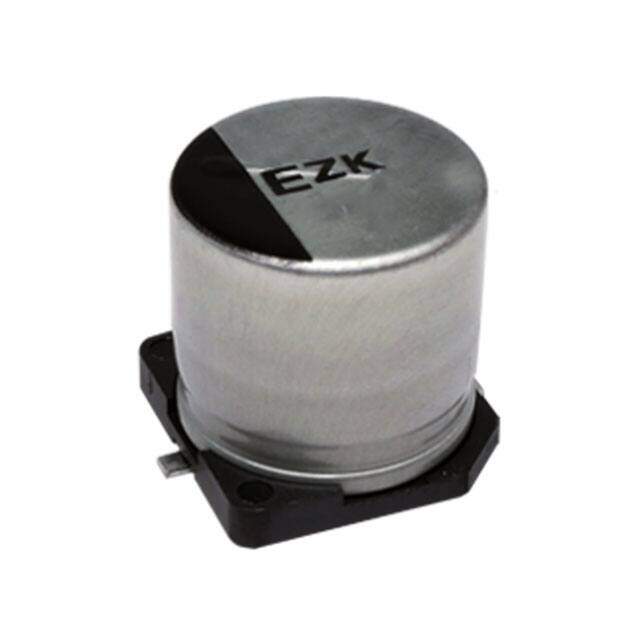

EEH-ZC1E560V
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - SMD
Category Capacitors / Aluminum - Polymer Capacitors
Description
CAP ALUM POLY 56UF 20% 25V SMD
PDF
/
Buying Options
Total Price: USD $1.57
Unit Price: USD $1.5664
≥1 USD $1.5664
≥10 USD $1.17216
≥100 USD $1.0692
≥500 USD $0.875952
≥1000 USD $0.69909
Inventory: 1028
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.217 5.50mm
Technical
Ripple Current @ High Frequency 900mA @ 100kHz
Ripple Current @ Low Frequency 135mA @ 100Hz
Lifetime @ Temp 4000 Hrs @ 125°C
ESR (Equivalent Series Resistance) 50mOhm
Capacitance 56μF
Voltage - Rated 25V
Applications Automotive
Type Hybrid
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.248Dia 6.30mm
Series ZC, Anti-Vibration
Published 2016
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Surface Mount Land Size 0.260Lx0.260W 6.60mmx6.60mm
Package / Case Radial, Can - SMD
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
